Hollow brace wraparound gusset (59)

Hollow brace wraparound gusset (59) connects 1 to 10 braces to the corner where 2 or 3 parts meet, using a gusset plate. The gusset plate can be wrapped around the third part, usually a column. Bolts or welds the brace web to the gusset plate using connection plates, and bolts or welds the brace flange to the gusset plate using clip angles. Either connects the gusset plate directly to the existing parts, or uses clip angles or connection plates. Seals braces.

Objects created

Gusset plate
Connection plates (optional)
Clip angles (optional)
Seal plates
Tongue plates
Cover plate
Bolts
Welds

Use for


Situation	Description
	Brace profile: RHS Framing type: Beam and column Gusset plate is bolted to the column flange using a clip angle. Braces are bolted to the gusset plate using a tongue plate.
	Brace profile: RHS Framing type: Beam and column Gusset plate is bolted to the column flange using a clip angle. Braces are welded to the connection plate. The end of the brace is notched to accommodate the bolts in the connection between the connection plate and the gusset plate.

Before you start

Create 2 or 3 parts that form a corner, and 1 to 10 braces.

Note:

Tekla Structures uses values in the joints.def file to create this component.

Selection order

Select the main part (the first part that forms the corner).
Select the secondary part (first brace).
Select the second secondary part (second brace).
Select the subsequent secondary parts (subsequent braces).
Select the secondary part that forms the corner (Tekla Structures connects the gusset plate to this part).
If needed, select the column to wrap the gusset plate around the column where two beams and the column meet.
Click the middle mouse button to create the connection.

Part identification key


	Description
1	Gusset plate
2	Connection plate
3	Clip angle
4	Seal plate

Picture tab

Use the Picture tab to define the shape of the gusset plate, location of the braces and clip angles, and the work point location.

Dimensions


	Description
1	Define the gap distance between the gusset plate edge and the main part.
2	Define the edge distance between the last secondary part and the last brace.
3	Define the distance between the braces.
4	Define the edge distance between the first brace and the main part.
5	Define the gap distance between the gusset plate edge and the secondary part (second part that forms the corner).
6	Define the gusset plate corner angle (in degrees). This value affects the gusset plate shape.
7	Define the length of the edge of the gusset plate. This value affects the gusset plate shape and connection plate width.
8	Define the gap distance between the gusset plate edge and the seal plate.
9	Define the length of the edge of the connection plate.
10	Define the brace dimension on the connection plate. To prevent the connection plate from penetrating the hollow brace, enter a negative value for the dimension.
11	Define the gusset plate edge distance in relation to the work point.
12	Define the gusset plate edge distance to the flange of the third part.
13	Define the clip angle edge distance in relation to the work point.
14	Define the clip angle edge distance to the flange of the third part.

Work point position


Option	Description
	Select the work point position. The default position is the point where the two main parts intersect. Tekla Structures uses the work point of a component to calculate check dimensions and part position dimensions in drawings.

Gusset tab

Use the Gusset tab to define the gusset plate, connection plate and clip angle properties.

Parts


Option	Description
Gusset	Thickness, width and height of the gusset plate.
Connection plates	Thickness and height of the connection plates.
Upper clip angle Lower clip angle	Select the clip angle profile from the profile catalog.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Finish	Describes how the part surface has been treated.

Note: The following examples show only some of the available options. You will find more options on the Gusset tab.

Gusset plate connection

Define how the gusset plate is connected to the main part.


Option	Description
	Default Gusset plate is connected to the main part with a clip angle. AutoDefaults can change this option.
	Gusset plate is connected to the main part with clip angles. Select to which side of the gusset plate the clip angles are created.
	Gusset plate is connected to the main part with a connection plate. Select to which side of the gusset plate the connection plate is created.

Connection plate cut through dimensions


	Description
1	Connection plate cut through length
2	Chamfer radius
3	Horizontal chamfer dimension
4	Vertical chamfer dimension

Clip angle orientation

Define how the clip angle is placed on the connection.


Option	Description
	Default Clip angle is placed on the connection so that the longer leg is connected to the gusset plate. AutoDefaults can change this option.
	Clip angle is placed on the connection so that the longer leg is connected to the main part.

Erection clearance

You can define the clearance for both the main part and the last secondary part connection plates or clip angles.

Gusset plate shape

When you select the option to optimize the gusset plate weight, you can define whether the selection order of the braces affects the position of the braces.


Option	Description
	Default AutoDefaults can change this option.
	This option optimizes the gusset plate weight.

Gusset plate position on the brace

Define where to place the gusset plate on the brace. If needed, you can fine-tune the gusset plate position by moving the gusset plate in the z or in the y direction.


Option	Description
	Default Gusset plate is positioned in the middle of the brace. AutoDefaults can change this option.
	Gusset plate is positioned on the top flange of the brace.
	Define how much the gusset plate is moved in the z direction.
	Define how much the gusset plate is moved in the y direction.

Notch angle


Option	Description
	Default Square notch If the gusset plate clashes with the column, the gusset plate is notched to wrap around the column. AutoDefaults can change this option.
	Square notch
	Bevel notch

Notch chamfer type


Option	Description
	Default Bevel chamfer AutoDefaults can change this option.
	No chamfer Notched edges are parallel to the edges of the gusset plate.
	Bevel chamfer
	Rounded chamfer calculated as a quarter of a circle. Enter the diameter of the circle as the horizontal dimension of the chamfer.
	Rounded chamfer calculated as a three quarters of a circle. Enter the diameter of the circle as the horizontal dimension of the chamfer. The center point of the circle is the corner of the notch.
	Corner of the gusset plate is beveled.
	Corner of the gusset plate is not notched or chamfered.

Chamfer dimensions


	Description
1	Horizontal dimension of the chamfer
2	Vertical dimension of the chamfer

Gusset plate shape

The gusset plate edge can be perpendicular either to the main part or the secondary part.


Option	Description
	Select the gusset plate edge shape between the last and second last secondary part.
	Select the gusset plate egde shape between the main part and the first secondary part.

Brace conn tab

Use the Brace conn tab to control the connection plate, seal plate, tongue plate, and cover plate properties.

Parts


Option	Description
Connection plate	Thickness, width and height of the connection plate.
Seal plates	Thickness and height of the seal plates.
Tongue plate	Thickness and height of the tongue plate.
Cover plate	Thickness, width and height of the cover plate.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Finish	Describes how the part surface has been treated.

Brace connection types

Define how the brace is connected to the connection plate.


Option	Description
	Default Brace is welded. AutoDefaults can change this option.
	Brace is welded.
	Brace is bolted.
	Brace is welded and notched around the nuts.
	Tongue plate and cover plate are created.

Cut in bracing

Define the width of the cut in the bracing, where t is the thickness of the connection plate.

Define the length of the cut in the bracing from the edge of the connection plate.

Round cut in bracing


Option	Description
	Default Square cut AutoDefaults can change this option.
	Square cut
	Round cut Enter the radius value.

Connection plate

Define whether the brace is notched or the connection plate cut when the connection plate is connected to the brace.


Option	Description
	Default Brace is notched. AutoDefaults can change this option.
	Brace is notched.
	Connection plate is cut.
	If you cut the connection plate, you can define the size of the gap between the brace and the connection plate.

Number of connection plates

Define whether one or two connection plates are used for connecting the brace to the gusset plate.


Option	Description
	Default One connection plate. AutoDefaults can change this option.
	One connection plate.
	Two connection plates

Connection plate chamfer


Option	Description
	Default No chamfers are created. AutoDefaults can change this option.
	No chamfers are created.
	Chamfers are created.
	If you create chamfers, define the vertical and horizontal chamfer dimensions.

End plates

If you use the end plates to seal the braces, define the end plate shape and dimensions.


Option	Description
	Default Square end plate. AutoDefaults can change this option.
	Square end plate.
	Round end plate.

End plate edge distance


Option	Description
	End plate edge distance from the brace outer edge.

Gusset conn 1 / Gusset conn 2 tab

Use the Gusset conn 1 and Gusset conn 2 tabs to control the bolt group properties for bolts that connect the gusset plate to the main part and secondary parts, and to control the clip angle attachment.

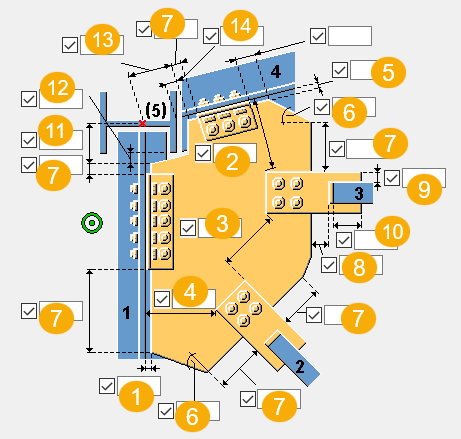

Bolt group dimensions


	Description
1	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
2	Number of bolts.
3	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.
4	Vertical bolt group dimension in relation to the work point.



1	Location where the bolts should be attached.
2	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
3	Number of bolts.
4	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.
5	Select whether the gusset or the clip angle (L profile) is set as the component main part for the bolts.

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`

Slotted holes

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.

Bolt assembly

The selected check boxes define which component objects (bolt, washers, and nuts) are used in the bolt assembly.

If you want to create a hole only, clear all the check boxes.

To modify the bolt assembly in an existing component, select the Effect in modify check box and click Modify.

Bolt length increase

Define how much the bolt length is increased. Use this option when, for example, painting requires the bolt length to be increased.

Clip angle attachment type

Define how the clip angle is attached to the gusset plate and to the main part.


Option	Description
	Default When the main part is a tube profile, the clip angles are welded to the main part and bolted to the secondary part. Otherwise the clip angles are bolted to both parts. AutoDefaults can change this option.
	Automatic When the main part is a tube profile, the clip angles are welded to the main part and bolted to the secondary part. Otherwise the clip angles are bolted to both parts.
	Main part is bolted and secondary part is welded.
	Main part is welded and secondary is part bolted.
	Both parts are bolted.
	Both parts are welded.

Staggering of bolts


Option	Description
	Default Not staggered AutoDefaults can change this option.
	Not staggered
	Staggered type 1
	Staggered type 2
	Staggered type 3
	Staggered type 4

Brace bolts 1 / Brace bolts 2 tab

Use the Brace bolts 1 and Brace bolts 2 tabs to control the bolts that connect the first and second brace to the gusset plate.

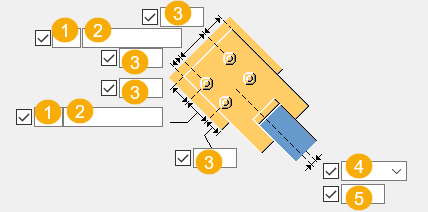

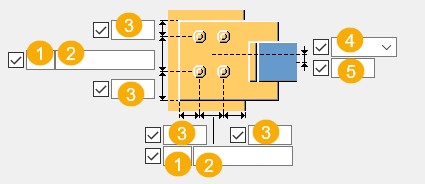

Bolt group dimensions on connection plates


	Description
1	Number of bolts.
2	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.
3	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
4	Select how to measure the dimensions for vertical bolt group position.
5	Dimension for vertical bolt group position.

Bolt distance

Define the minimum distance from the connection plate bolts to the intersection point of the main part and brace center lines. If a brace is perpendicular to the main part, the distance is measured from the main part center line to the nearest bolts.


Option	Option

Staggering of bolts


Option	Description
	Default Not staggered AutoDefaults can change this option.
	Not staggered
	Staggered type 1
	Staggered type 2
	Staggered type 3
	Staggered type 4

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`

Gusset side and brace side bolt type

Select the bolt type to define the location where the bolts should be attached.

Slotted holes

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.
