Corner bolted gusset (57)

Corner bolted gusset (57) connects 1 to 10 braces to the corner where two parts meet, using a gusset plate. Welds the gusset plate to the first selected part that forms the corner. Creates optional clip angles, either at the ends of the braces, or on each side. Seals RHS or tube braces.

Objects created

Gusset plate
Clip angles (optional)
Stiffeners
Brace bolts
Angle bolts
Welds

Use for


Situation	Description
	Brace profile: RHS Framing type: Column and extended end plate Gusset plate is welded to an extended end plate. Braces are pinned to the gusset plate.
	Brace profile: T, L Framing type: Column and extended end plate Gusset plate is welded to an extended end plate. Braces are bolted to the gusset plate.

Before you start

Create two parts to form a corner, and 1 to 10 braces.

Selection order

Select the main part (the first part that forms the corner).

The gusset plate is connected to this part.
Select the secondary part (first brace).
Select the second secondary part (second brace).
Select the subsequent secondary parts (subsequent braces).
Select the secondary part that forms the corner.
Click the middle mouse button to create the connection.

Note:

Tekla Structures uses values in the joints.def file to create this component.

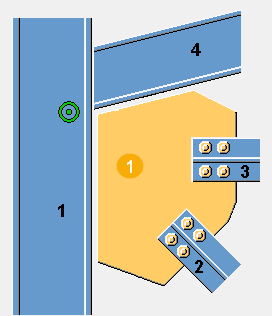

Part identification key


	Description
1	Gusset plate

Picture tab

Use the Picture tab to define the gusset plate position and shape.

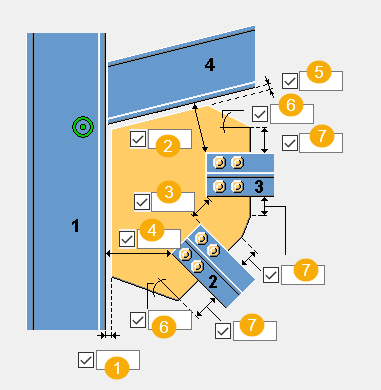

Dimensions


	Description
1	Define the gap distance between the gusset plate edge and the main part (first part that forms the corner).
2	Define the edge distance between the last secondary part and the last brace.
3	Define the distance between the braces.
4	Define the edge distance between the first brace and the main part.
5	Define the gap distance between the gusset plate edge and the secondary part (second part that forms the corner).
6	Define the gusset plate corner angle (in degrees). This value affects the gusset plate shape.
7	Define the length of the edge of the gusset plate. This value affects the gusset plate shape.

Gusset tab

Use the Gusset tab to control the gusset plate properties.

Gusset plate


Option	Description
Gusset	Thickness, width and height of the gusset plate.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Finish	Describes how the part surface has been treated.

Note: The following examples show only some of the available options. You will find more options on the Gusset tab.

Gusset plate position on the brace

Define where to place the gusset plate on the brace. If needed, you can fine-tune the gusset plate position by moving the gusset plate in the z or in the y direction.


Option	Description
	Default Gusset plate is positioned in the middle of the brace. AutoDefaults can change this option.
	Gusset plate is positioned on the top flange of the brace.
	Define how much the gusset plate is moved in the z direction.
	Define how much the gusset plate is moved in the y direction.

Gusset plate shape

When you select the option to optimize the gusset plate weight, you can define whether the selection order of the braces affects the position of the braces.


Option	Description
	Default AutoDefaults can change this option.
	This option optimizes the gusset plate weight.

Brace position


Option	Description
	Default The brace position is not affected. AutoDefaults can change this option.
	The first selected brace is placed closest to the main part.

Brace notch


Option	Description
	Select whether the brace is notched. You may want to notch the brace if the plate collides with the brace flange or if you want to create slots in the hollow braces. The last option creates a notch and fastens the plate to the brace by using a bolt.
	Vertical notch dimension Horizontal notch dimension. Notch angle.

Round cut in bracing


Option	Description
	Default Square cut AutoDefaults can change this option.
	Square cut
	Round cut Enter the radius value.

Gusset plate shape

The gusset plate edge can be perpendicular either to the main part or the secondary part.


Option	Description
	Select the gusset plate edge shape between the last and second last secondary part.
	Select the gusset plate egde shape between the main part and the first secondary part.

Gusset plate fitting


Option	Description
	Select whether the gusset is fitted to the last selected secondary part.

Gusset welding


Option	Description
	Default Gusset plate is welded to the secondary part. AutoDefaults can change this option.
	Gusset plate is welded to the secondary part.
	Gusset plate is welded to the main part.
	Gusset plate is welded to the main part and the secondary part.

Gusset plate inner corner

Define the horizontal and vertical chamfer dimensions.


Option	Description
	Default No chamfer AutoDefaults can change this option.
	No chamfer
	Line chamfer
	Convex chamfer
	Concave chamfer
	Bevel
	Square

Stiffeners tab

Use the Stiffeners tab to control the stiffener properties and dimensions.

Stiffeners


Option	Description
Stiffener 1 Stiffener 2	Thickness of the stiffener.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Finish	Describes how the part surface has been treated.

Stiffener length


	Description
1	Distance between the stiffener edge and the gusset plate edge.
2	Length of stiffener.

Stiffener dimensions


	Description
1	Width of the stiffener.
2	Length of the stiffener base.
3	Length of the skew part of the stiffener.
4	Distance from the stiffener center line.
5	Vertical distance between the stiffener base and the skew part.

Brace bolts 1 / Brace bolts 2 tabs

Use the Brace bolts 1 and Brace bolts 2 tabs to control the bolts that connect the first and subsequent braces to the gusset plate.

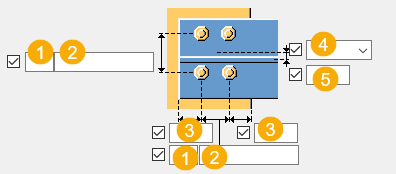

Bolt group dimensions


	Description
1	Number of bolts.
2	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.
3	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
4	Select how to measure the dimensions for vertical bolt group position.
5	Dimension for vertical bolt group position.

Bolt distance

Define the minimum distance from the connection plate bolts to the intersection point of the main part and brace center lines. If a brace is perpendicular to the main part, the distance is measured from the main part center line to the nearest bolts.


Option	Option

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`

Slotted holes

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.

Bolt assembly

The selected check boxes define which component objects (bolt, washers, and nuts) are used in the bolt assembly.

If you want to create a hole only, clear all the check boxes.

To modify the bolt assembly in an existing component, select the Effect in modify check box and click Modify.

Bolt length increase

Define how much the bolt length is increased. Use this option when, for example, painting requires the bolt length to be increased.

Staggering of bolts


Option	Description
	Default Not staggered AutoDefaults can change this option.
	Not staggered
	Staggered type 1
	Staggered type 2
	Staggered type 3
	Staggered type 4

Angle bolts tab

Use the Angle bolts tab to define the clip angles and to control the bolts that connect the clip angle to the gusset plate.

Part


Part	Description
L profile	Select the clip angle profile from the profile catalog.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Finish	Describes how the part surface has been treated.

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`
Site/Workshop	Location where the bolts should be attached.	`Site`

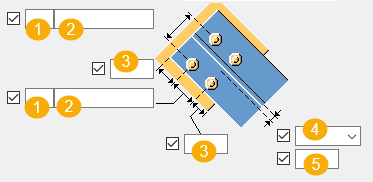

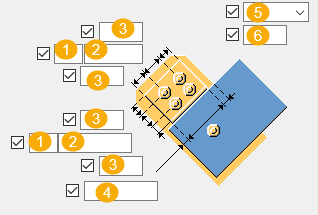

Bolt group dimensions


	Description
1	Number of bolts.
2	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.
3	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
4	Clip angle edge distance to the brace edge.
5	Select how to measure the dimensions for horizontal bolt group position.
6	Dimension for horizontal bolt group position.

Clip angle position


Option	Description
	Select the clip angle position.

General tab

Click the link below to find out more:

General tab

Design tab

Click the link below to find out more:

Design tab

Analysis tab

Click the link below to find out more:

Analysis tab

Welds

Click the link below to find out more:

Create welds
