Full depth shear plate (81)
Full depth shear plate (81) connects a beam to a beam with a shear tab that is bolted to the secondary part and welded to the main part.
Objects created
-
Shear tab
-
Web stiffener
-
Welds
Use for
| Situation | Description |
|---|---|
|
|
Beam connected to a beam with a shear tab. |
Selection order
-
Select the main part.
-
Select the secondary part.
The connection is created automatically when the secondary part is selected.
Part identification key

| Description | |
|---|---|
|
1 |
Shear tab |
Picture tab

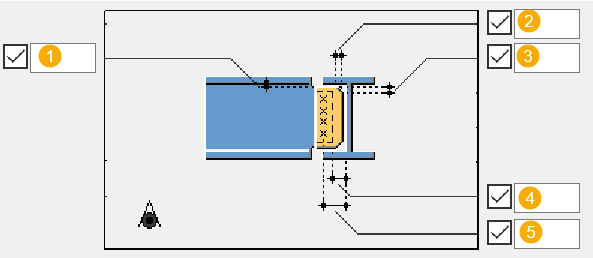

Use the Picture tab to define the connection dimensions.
Dimensions

| Description | |
|---|---|
|
1 |
Distance between the shear tab and the main part flanges. By default, the distance is 0. |
|
2 |
Horizontal chamfer dimension. |
|
3 |
Vertical chamfer dimension. |
|
4 |
Horizontal distance between the main part and secondary part. |
|
5 |
Distance between the main part center line and the first bolt. |
Parts tab
Use the Parts tab to define the part properties.
Parts
| Option | Description | Default |
|---|---|---|
|
Tab plate |
Thickness of the shear tab. |
10 mm |
|
Web stiffener |
Thickness, width, and height of the web stiffener. Enter the stiffener thickness to create the stiffener. |
Web stiffener is not created. |
|
Option |
Description |
Default |
|---|---|---|
|
Pos_No |
Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number. |
The default part start number is defined in the Components settings in . |
|
Material |
Material grade. |
The default material is defined in the Part material box in the Components settings in . |
|
Name |
Name that is shown in drawings and reports. |
Parameters tab
Use the Parameters tab to define the shear tab location and chamfers, and stiffener chamfers.
| Option | Description |
|---|---|
|
Tab location |
Define the shear tab location in relation to the secondary beam. The option Both creates two shear tabs, one to the left side of the beam web and another to the right side of the web. The default value is Left. |
|
Tab plate chamfer |
|
|
Beam cut |
|
|
Opposite web stiffener |
|
|
Height |
|
|
Tolerance |
Vertical distance between the web stiffener and main part flanges. By default, this tolerance is zero. |
|
Angle |
By default, the angle is zero. |
|
Chamfer type |
|
|
Chamfer X, Chamfer Y |
Define the horizontal and vertical chamfer dimensions. With arc type chamfers, Chamfer X defines the radius and Chamfer Y is not used. |
|
Opposite flange stiffeners |
|
|
Direction |
Select the stiffener direction. |
|
Tolerance |
Vertical distance between the web stiffener and main part flanges. |
|
Chamfer type |
|
|
Chamfer X, Chamfer Y |
Define the horizontal and vertical chamfer dimensions. With arc type chamfers, Chamfer X defines the radius and Chamfer Y is not used. |
General tab
Click the link below to find out more:
Design tab
Click the link below to find out more:
Analysis tab
Click the link below to find out more:
Welds
Click the link below to find out more:
