H&V Shear plate (64)
H&V Shear plate (64) connects a beam to a beam, or a beam to a column with a hip and valley shear tab connection.
Objects created
-
Shear tab
-
Extension plates
-
Cap plate
-
Plate washer
-
Bolts
-
Welds
Use for
| Situation | Description |
|---|---|
|
|
Beam to beam connection with a shear tab |
Selection order
-
Select the main part.
-
Select the secondary part.
The connection is created automatically when the secondary part is selected.

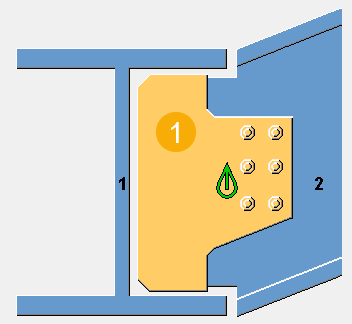

Part identification key
| Description | |
|---|---|
|
1 |
Shear tab |
Picture tab
The Picture tab shows the H&V shear tab connection.
Parts tab
Use the Parts tab to define the part properties, cap plate shape, and plate washer creation and position.
Parts
| Option | Description |
|---|---|
|
Shear plate |
Thickness of the shear tab |
|
Top Web Ext Btm Web Ext |
Thickness, width, and height of the extension plate |
|
Cap |
Thickness, width, and height of the cap plate |
|
Plate washer |
Thickness, width, and height of the plate washer |
|
Option |
Description |
Default |
|---|---|---|
|
Pos_No |
Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number. |
The default part start number is defined in the Components settings in . |
|
Material |
Material grade. |
The default material is defined in the Part material box in the Components settings in . |
|
Name |
Name that is shown in drawings and reports. |
Cap plate shape
For rounded tubes, select whether the cap plate is rounded or square.
Plate washer
Define plate washers for bolts and select the plate washer side.
| Option | Description |
|---|---|
|
|
Default No plate washer AutoDefaults can change this option. |
|
|
No plate washer |
|
|
One plate washer |
|
|
Individual square plate washers for each bolt |
|
|
Individual round plate washers for each bolt |
| Option | Description |
|---|---|
|
Select whether the plate washer is created for one shear tab or both shear tabs. |
Shear plate tab
Use the Shear plate tab to define the shear tab chamfers and position, and the top, bottom, and end shape.

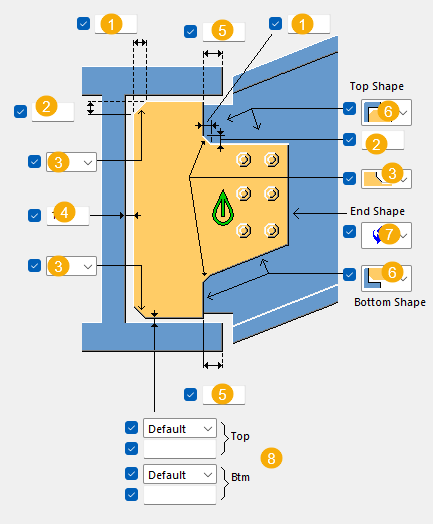

Dimensions and shapes
| Description | |
|---|---|
|
1 |
Horizontal chamfer dimension |
|
2 |
Vertical chamfer dimension |
|
3 |
Select the chamfer shape. |
|
4 |
Distance between the edge of the shear tab and the main part web |
|
5 |
Shear tab edge distance from the main part flange |
|
6 |
Select the top and bottom shape for the shear tab. |
|
7 |
Select the end shape of the shear tab. |
|
8 |
Distance between the edge of the shear tab and the main part top or bottom flange
|
Secondary part distance
|
1 |
Shear tab position relative to the secondary part web. |
|
2 |
Gap between the shear tab and secondary part web. |
Change attaching and location surface
| Option | Description |
|---|---|
|
Alt attachment on prim |
Select whether to change the attaching surface on the main part. By default, the shear tab is connected to the main part web. When the secondary part has a steep sloping, the shear tab is connected to the main part flange. |
|
Alt location on sec |
Select whether to change the location surface on the secondary part. By default, the shear tab is connected to the main part web. When the main part has a steep sloping, the shear tab is connected to the main part flange. |
Shear tab end cut
| Option | Description |
|---|---|
|
|
Default The shear tab end is not cut. AutoDefaults can change this option. |
|
|
Square The shear tab end is not cut. |
|
|
Bevel The shear tab end is cut parallel to the main part web. |
Fitting tab
Use the Fitting tab to define whether fitting is created, and the location and shape of the fitting.

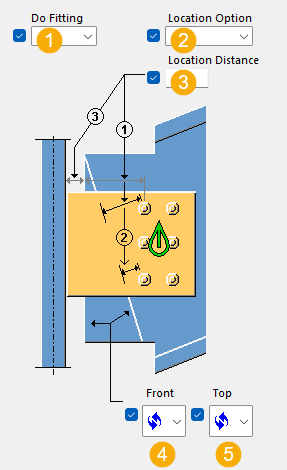

Fitting creation
| Description | Default | |
|---|---|---|
|
1 |
Select whether fitting is created. |
Yes Fitting is created. |
|
2 |
Select a reference point from which the fitting is measured. |
Automatic The reference point is the center of the bolt that is closest to the fitting line in the model. |
|
3 |
Distance from the reference point to the fitting line. |
|
|
4 |
Select how the fitting is created from the side view. |
|
|
5 |
Select how the fitting is created from the top view. |
Bolts tab
Use the Bolts tab to define the bolt group dimensions and bolt properties.

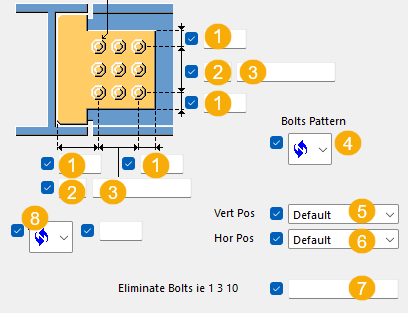

Bolt group dimensions
| Description | |
|---|---|
|
1 |
Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part. |
|
2 |
Number of bolts. |
|
3 |
Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values. |
|
4 |
Staggering of bolts |
|
5 |
Select how to measure the dimensions for vertical bolt group position. When you set the position to Below, locations 1 and 2 shown on the Fitting tab are switched. |
|
6 |
Select how to measure the dimensions for horizontal bolt group position. |
|
7 |
Define which bolts are deleted from the bolt group. Enter the bolt numbers of the bolts to be deleted and separate the numbers with a space. Bolt numbers run from left to right and from top to bottom. |
|
8 |
Location of the first bolt Define the vertical distance for the location of the first bolt. The distance is from the bolt center to the top of the secondary part or the top of the main part. |
Bolt basic properties
|
Option |
Description |
Default |
|---|---|---|
|
Bolt size |
Bolt diameter. |
Available sizes are defined in the bolt assembly catalog. |
|
Bolt standard |
Bolt standard to be used inside the component. |
Available standards are defined in the bolt assembly catalog. |
|
Tolerance |
Gap between the bolt and the hole. |
|
|
Thread in mat |
Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used. |
Yes |
|
Site/Workshop |
Location where the bolts should be attached. |
Site |
Slotted holes
You can define slotted, oversized, or tapped holes.
|
Option |
Description |
Default |
|---|---|---|
|
1 |
Vertical dimension of slotted hole. |
0, which results in a round hole. |
|
2 |
Horizontal dimension of slotted hole, or allowance for oversized holes. |
0, which results in a round hole. |
|
Hole type |
Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes. |
|
|
Rotate Slots |
When the hole type is Slotted, this option rotates the slotted holes. |
|
|
Slots in |
Part(s) in which slotted holes are created. The options depend on the component in question. |
Bolt assembly
The selected check boxes define which component objects (bolt, washers, and nuts) are used in the bolt assembly.
If you want to create a hole only, clear all the check boxes.
To modify the bolt assembly in an existing component, select the Effect in modify check box and click Modify.
Bolt length increase
Define how much the bolt length is increased. Use this option when, for example, painting requires the bolt length to be increased.
Top notch tab/Btm notch tab
Use the Top notch and Btm notch tabs to define notch creation and dimensions.
Notch creation
| Option | Description |
|---|---|
|
Do notch |
Select whether notching is created. The default is Yes. |
|
Type of clearance |
The default is Web with flange. |
|
Strip/Cope option |
Select from the following settings to strip or cope the secondary part flange.
|

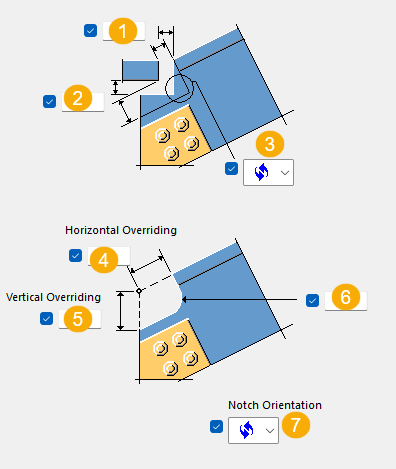

Top notch dimensions
| Description | |
|---|---|
|
1 |
Horizontal clearance dimension for the notch The clearance distance is from three intersection planes: top or bottom flange plane, end of flange plane, and inner web or side surface, according to the type of clearance. |
|
2 |
Vertical clearance dimension for the notch The clearance distance is from the intersection point of three planes: top or bottom flange plane, end of flange plane, and inner web or side surface, according to the type of clearance. |
|
3 |
Select the notch orientation, square, or bevel. |
|
4 |
Horizontal dimension for notch override The distance is from the intersection point of three planes: top of flange plane, fitting plane, and inner web or side surface, according to the type of clearance. Entering any positive value will override the horizontal distance for notch clearance. |
|
5 |
Vertical dimension for notch override The distance is from the intersection point of three planes: top of flange plane, fitting plane, and inner web or side surface, according to the type of clearance. Entering any positive value will override the vertical distance for notch clearance. |
|
6 |
Define the radius of the notch. |
|
7 |
Select the notch orientation, square or bevel. |

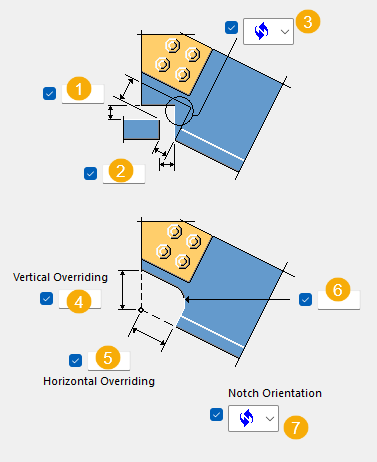

Bottom notch dimensions
| Description | |
|---|---|
|
1 |
Vertical dimension for notch clearance The clearance distance is from the intersection point of three planes: bottom of flange plane, end of flange plane, and inner web or side surface, according to the type of clearance. |
|
2 |
Horizontal dimension for notch clearance The clearance distance is from the intersection point of three planes: top or bottom flange plane, end of flange plane, and inner web or side surface, according to the type of clearance. |
|
3 |
Select the notch orientation, square or bevel. |
|
4 |
Vertical dimension for notch override The dimension is from the intersection point of three planes: top or bottom flange plane, end of flange plane, and inner web or side surface, according to the type of clearance. |
|
5 |
Horizontal dimension for notch override The dimension is from the intersection point of three planes: top or bottom flange plane, end of flange plane, and inner web or side surface, according to the type of clearance. |
|
6 |
Define the radius of the notch. |
|
7 |
Select the notch orientation, square or bevel. |
Flange cut options
| Description | |
|---|---|
|
1 |
Dimension for additional flange cut on the inner side from the end of the beam, if not fitted, or from the fitting surface, if fitted. If the dx distance and dy distance both have default values (empty), the connection determines whether the cut is necessary. Set the value to 0.00 if you do not want any further cut in the inner side flange. |
|
2 |
Dimension for additional flange cut on the outer side from the end of the beam, if not fitted, or from the fitting surface, if fitted. If the dx distance and dy distance both have default values (= empty), the connection does not create any further cut in the outer side flange. |
|
3 |
Dimension for additional flange cut distance (dx) on the inner side. The dimension is measured from the center line of the beam. If the dx distance and dy distance both have default values (= empty), the connection determines whether the cut is necessary. |
|
4 |
Dimension for additional flange cut distance (dx) on the outer side. The dimension is measured from the center line of the beam. |
|
5 |
Define the flange cut thickness. The default is To K distance, the size of the part radius is also taken into account. |
Ext plates tab
Use the Ext plates tab to define the dimensions and shape of the extension plate.

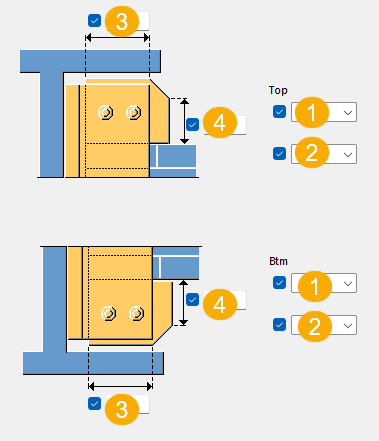

Dimensions
| Description | |
|---|---|
|
1 |
Select whether an extension plate is created. |
|
2 |
Select the shape of the extension plate. |
|
3 |
Horizontal dimension for the shaped extension plate. |
|
4 |
Vertical dimension for the shaped extension plate. |
Sec slotting tab
Use the Sec slotting tab to define how the secondary part is cut.

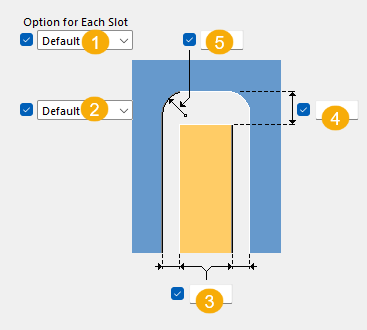

Dimensions
| Description | |
|---|---|
|
1 |
Define the slots to be created.
|
|
2 |
Select the shape of the cut. |
|
3 |
Horizontal cut dimension |
|
4 |
Vertical cut dimension |
|
5 |
Corner radius dimension |
General tab
Click the link below to find out more:
Design tab
Click the link below to find out more:
Analysis
Click the link below to find out more:
Welds
Click the link below to find out more:
