Two sided angle cleat (25)
Two sided angle cleat (25) connects two beams to a beam or to a column with one or two bolted clip angles.
Objects created
-
Clip angles
-
Bolts
Use for
| Option | Description |
|---|---|
|
|

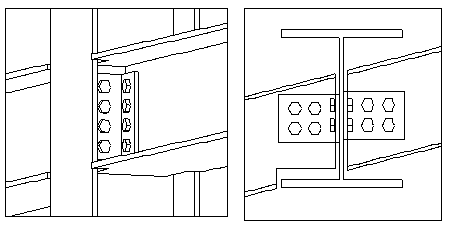

Two beams connected to a column or a beam with bolted clip angles. |
Selection order
-
Select the main part (column or beam).
-
Select the first secondary part (beam).
-
Select the second secondary part (beam).
Click the middle mouse button to create the component.
Part identification key
| Description | |
|---|---|
|
1 |
L profile |
|
2 |
L profile 2 |
Picture tab
Use the Picture tab to define the L profile length and the gap between the main part and the angle profiles. You can control the L profile length with the L profile edge distance.
Dimensions
| Description | |
|---|---|
|
1 |
L profile edge distance from the first secondary part upper edge. |
|
2 |
L profile edge distance from the first secondary part lower edge. |
|
3 |
Gap between the main part and the angle profile in the first secondary part. By default, the value is zero. |
|
4 |
L profile 2 edge distance from the second secondary part upper edge. |
|
5 |
L profile 2 edge distance from the second secondary part lower edge. |
|
6 |
Gap between the main part and the angle profile in the second secondary part. By default, the value is zero. |
Parts tab
Use the Parts tab to define the angle profile properties.
Parts
| Option | Description | Default |
|---|---|---|
|
L profile |
Select the profile from the profile catalog. |
L150-100-10 |
|
L profile 2 |
Select the profile from the profile catalog. |
L150-100-10 |
|
Option |
Description |
Default |
|---|---|---|
|
Pos_No |
Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number. |
The default part start number is defined in the Components settings in . |
|
Material |
Material grade. |
The default material is defined in the Part material box in the Components settings in . |
|
Name |
Name that is shown in drawings and reports. |
Parameters tab
Use the Parameters tab to define the position of the angle profiles.
Angle profile positions
| Option | Description |
|---|---|
|
Placing, Placing 2 |
Define the number and side of angles in single angle connections separately for both sides. |
|
Move L-prof. 2 in z direction, Move L-prof. 2 in y direction
|
Move the position of angle profiles on the secondary part side. By default, the angle profiles are symmetrical. For example, when connecting skewed secondary beams, the offsets can be used for placing the angle profiles. |
Bolting direction
|
Option |
Description |
|---|---|
|
|
Default Bolting direction 1 AutoDefaults can change this option. |
|
|
Bolting direction 1 |
|
|
Bolting direction 2 |
Notch tab
Use the Notch tab to define the secondary part notch dimensions.

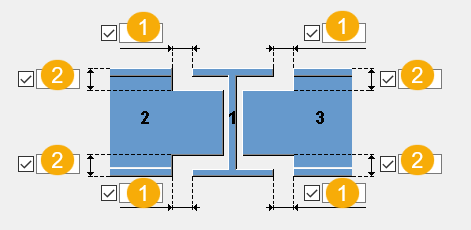

Cut dimensions
| Description | Default | |
|---|---|---|
|
1 |
Dimensions for the horizontal flange cuts. |
10 mm |
|
2 |
Dimensions for the vertical flange cuts. |
The gap between the notch edge and the beam flange is equal to the main part web rounding. The notch height is rounded up to the nearest 5 mm. |
