Moment connection (130)

Moment connection (130) creates a welded connection between a column and one or two beams. A shear tab is welded to the column and bolted to the beams. Weld preparations and stiffeners can be created.

Objects created

Shear tab
Leveling plate
Stiffeners
Bolts
Welds

Use for


Situation	Description
	Shear tab is welded to the column and bolted to the beam.

Limitations

The column must be either an I section or a tee section. For tee sections, the beams are connected to the flanges of the tee to create a section in the form of a cross.
Beams must be I sections.
Beams can be horizontally skewed up to a limit of 5 degrees.
Beams cannot be vertically sloped.

Selection order

Select the main part (column).
Select the first secondary part (beam).
If needed, select the second secondary part (beam).
Click the middle mouse button to create the connection.

Part identification key


	Description
1	Shear tab
2	Leveling plate
3	Stiffener

Picture tab

Use the Picture tab to define whether weld preparations are created, and the dimensions and shape of the weld access holes.

Weld preparations for flanges and web

Define whether weld preparations are created on the beam flanges and web. The default is that weld preparations are not created.

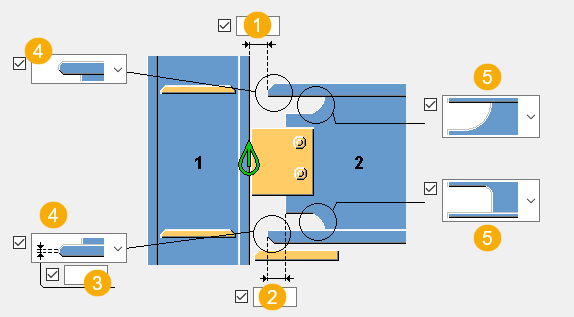

Dimensions


	Description
1	Weld gap dimension between the end of the beam flanges and the column web or flange.
2	Beam clearance distance between the ends of the beam web and the beam flange.
3	Minimum thickness of the flange face after the weld preparation cut has been made. The smallest possible value is `2.0 mm`.
4	Top and bottom flange weld type.
5	Top and bottom weld access hole type.

Top flange weld type

Select the weld preparation type for the beam top flange.


Option	Description
	Default Double bevel AutoDefaults can change this option.
	Double bevel
	Single bevel

Top weld access hole

Select the weld aceess hole type for the beam web.


Option	Description
	Default Circular The weld access hole is circular when the horizontal length and vertical depth of the hole are the same. AutoDefaults can change this option.
	Circular
	Elongated

Bottom weld access hole

Select the weld aceess hole type for the beam web.


Option	Description
	Default Rectangular AutoDefaults can change this option.
	Rectangular
	Elongated
	Circular

Bottom flange weld type

Select the weld preparation type for the beam bottom flange.


Option	Description
	Default Double bevel AutoDefaults can change this option.
	Double bevel
	Single bevel bottom
	Single bevel top

Beam cut dimensions


	Description
1	Minimum thickness of the web after the weld preparation cut has been made. The smallest possible value is `2.0 mm`.
2	Depth of the flange cut on the beam.
3	Length of the flange cut on the beam.

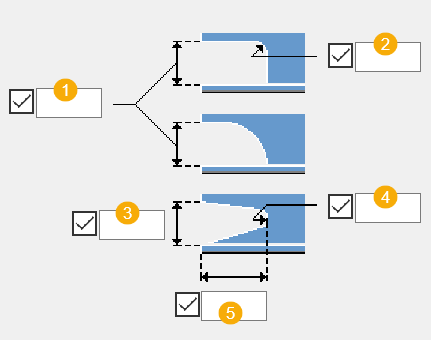

Weld access hole dimensions


	Description
1	Weld access hole vertical depth. The dimension is measured from the under side of the beam top flange, or from the top side of the beam bottom flange, to the top of the weld access hole. Enter a value to create the hole.
2	Radius for the inner corner of the rectangular weld access hole to create a circular chamfer.
3	Weld access hole vertical depth. The dimension is measured from the top side of the beam bottom flange to the point on the beam web where the weld access hole cut exits the web. Enter a value to create the hole. The value can be greater than, less than, or equal to the weld access hole vertical depth.
4	Weld access hole diameter in the beam web. The dimension is the circular portion of the elongated weld access hole.
5	Weld access hole horizontal length. The dimension is measured from the web weld preparation cut to the end of the weld access hole. Enter a value to create the hole.

Shear plate tab

Use the Shear plate tab to define the shear tab properties, dimensions, and position.

Parts


Option	Description
Shear plate	Thickness of the shear tab.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

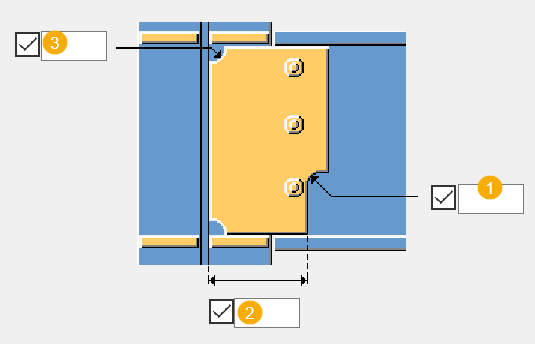

Dimensions


	Description
1	Shear tab cope corner radius.
2	Distance from the face of the column web to the shear tab corner cut. You can define this dimension when the beam is connected to the column web.
3	Radius of the shear tab corner cut. Define the weld access hole radius in the shear tab in the location where the shear tab is welded to the column.

Shear tab position


Option	Description
	Default Shear tab is created on the left side of the beam web. AutoDefaults can change this option.
	Shear tab is created on the left side of the beam web.
	Shear tab is created on the right side of the beam web.

Leveling plate tab

Use the Leveling plate tab to define the part properties, position, and dimensions. Define whether weld preparation is created in the leveling plate.

Leveling plate weld preparation

Define whether weld preparation is created in the leveling plate. The default value is that weld preparation is not created.

Parts


Option	Description
Leveling plate	Thickness and width of the leveling plate. Leveling plate can only be created for beam-to-column flange connections.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

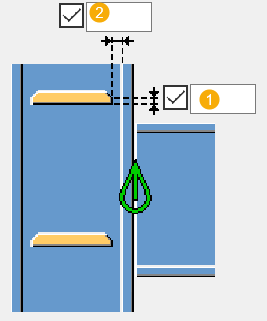

Leveling plate position


	Description
1	Leveling plate weld gap dimension from the column flange.
2	Leveling plate vertical offset from the beam edge.

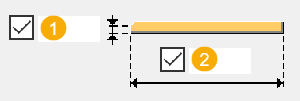

Leveling plate dimensions


	Description	Default
1	Minimum thickness of the leveling plate after the weld preparation cut has been made. The smallest possible value is `2.0 mm`.
2	Length of the leveling plate.	`200 mm`

Plate stiffeners tab

Use the Plate stiffeners tab to define the stiffener creation, properties, and position.

Stiffeners


Part	Description
Top Stiff N/S Btm Stiff N/S Top Stiff F/S Btm Stiff F/S	Thickness and width of the top and bottom stiffeners on the near and far side.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

Stiffener creation


Option	Option	Description
		Default Stiffener with no chamfers is created. Partial width. AutoDefaults can change this option.
		Stiffener is not created.
		Stiffener with line chamfers is created.
		Stiffener with no chamfers is created. Partial width.
		Stiffener with concave chamfers is created.
		Stiffener with convex chamfers is created.

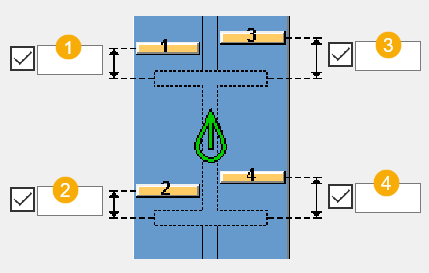

Stiffener positions


	Description
1	Size of the gap between the top far side stiffener and the beam flange edge.
2	Size of the gap between the bottom far side stiffener and the beam flange edge.
3	Size of the gap between the top near side stiffener and the beam flange edge.
4	Size of the gap between the bottom near side stiffener and the beam flange edge.

Stiffener chamfer size


	Description
1	Vertical chamfer dimension
2	Horizontal chamfer dimension

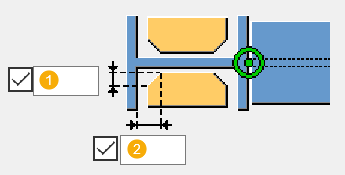

Stiffener dimensions


	Description
1	Length of the stiffener base. Minimum thickness of the stiffener plate after the weld preparation cut has been made. The smallest possible value is `3.0 mm`.
2	Stiffener edge distance from the column web.

Bolts tab

Use the Bolts tab to define the bolt group dimensions and bolt properties.

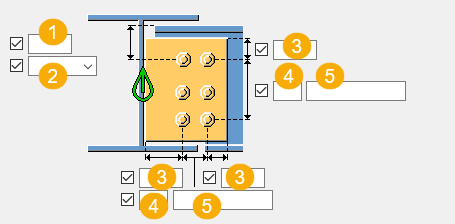

Bolt group dimensions


	Description
1	Dimension for vertical bolt group position.
2	Select how to measure the dimensions for vertical bolt group position. Top: From the upper edge of the secondary part to the uppermost bolt. Middle: From the center line of the bolts to the center line of the secondary part. Below: From the lower edge of the secondary part to the lowest bolt.
3	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
4	Number of bolts.
5	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`
Site/Workshop	Location where the bolts should be attached.	`Site`

Slotted holes

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.
