Panel stabilizer (114)

Panel stabilizer (114) creates extra stability for a structure when building a beam or a bar to a roof connection. The component adds extension profiles to the haunch connection for extra attachment. Normally, one or more profiles or plates are welded on the cap plate in the haunch connection.

Objects created

Extension profiles
Cap plate
Welds

Use for


Situation	Description
	Extension profiles are created at the top of a haunch column. The column can be of type H (I) or box. The extension profiles can be of any type. There are no limitations on the position of the column. If the column profile is of type H (I), the cap plate may be sloped only in the direction parallel to the web. If the column is a box profile, the cap plate may be sloped in the direction parallel to either the web or flange. The upper opening of the box profiles can be closed with a cap plate to prevent water from getting inside.

Selection order

Select the main part.
Select the secondary part.

The connection is created automatically when the secondary part is selected.

Part identification key


	Description
1	Outer profile
2	Middle profile
3	Inner profile

Picture tab

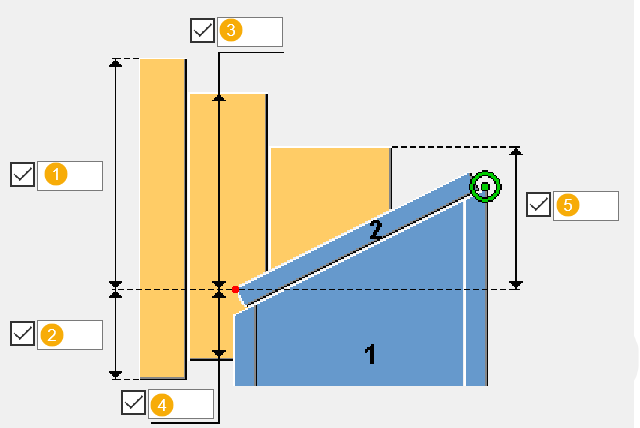

Use the Picture tab to define the connection dimensions and creation side.

Dimensions


		Default
1	Vertical distance of the outer profile top node from the main reference point.	`300 mm`
2	Vertical distance of the outer profile bottom node from the main reference point.	`300 mm`
3	Vertical distance of the middle profile top node from the main reference point.	`300 mm`
4	Vertical distance of the middle profile bottom node from the main reference point.	`300 mm`
5	Vertical distance of the inner profile top node from the main reference point.	`200 mm`


	Description	Default
1	Horizontal distance of the top or bottom node of the inner profile from the main reference point.	`0 mm`
2	Horizontal distance of the top or bottom node of the middle profile either from the axis of the column, or the top or bottom edge of the column.	`0 mm`
3	Horizontal distance of the top or bottom node of the outer profile from the top or bottom node of the middle profile.	`0 mm`
4	Horizontal distance of the top or bottom node of the inner or outer profile from either the face of the middle profile or the main reference point if there is no middle profile.	`0 mm`
5	Horizontal distance of the top or bottom node of the inner profile from the top or bottom node of the middle profile.	`0 mm`

Creation side


Option	Description
	The extension profiles are created to the lower part of the slope. This is the default option.
	The extension profiles are created to the upper part of the slope.

Outer profile/Middle profile/Inner profile tab

Use the Outer profile, Middle profile, and Inner profile tabs to define the part creation, properties, position, and shape.

Part

Select Yes to create the profile.


Option	Description
Outer profile	Select the profile from the profile catalog.
Middle profile	Select the profile from the profile catalog. Select whether a horizontal or vertical profile is created.
Inner profile	Select the profile from the profile catalog.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

Horizontal distance

Define how the horizontal distance of the top or bottom node of the profile is measured.


Option	Description
	Measured from the column axis
	Measured from the top edge of the column
	Measured from the bottom edge of the column

Horizontal position at depth


Option	Description
	Back
	Below
	Above

Horizontal position in plane

Define the horizontal position of the profile in the plane.


Option	Description
	Middle
	Right
	Left

Profile cut type


Option	Description
	Profile is not cut.
	Bevel, cut
	Square, cut
	Bevel
	Square

Direction of profile


Option	Description
	Direction is not flipped.
	Direction is flipped.

Cap plates tab

Use the Cap plates tab to define the part properties and cap plate creation.

Part


Option	Description	Default
Cap plate	Thickness of the cap plate.	`15 mm`


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

Cap plate creation

You can separately select whether to create the cap plate for the outer, middle, and inner profile.


Option	Description
	Cap plate is not created.
	Cap plate is created for the middle profile.
	Cap plate is created for the outer profile.
	Cap plate is created for the inner profile.

Cap plate edge distance


	Description
1	Vertical edge dimension.
2	Horizontal edge dimension.

General tab

Click the link below to find out more:

General tab

Analysis tab

Click the link below to find out more:

Analysis tab

Welds

Click the link below to find out more:

Create welds
