XS_DETAIL_VIEW_REFERENCE
Category in Advanced options dialog box: Drawing properties
You can move drawing views from one drawing to
another. This advanced option sets the reference text for detail view labels for
details moved to another drawing. You can enter free text, user-defined attributes
(%UDA_NAME%, %USERDEFINED.UDA_NAME%), or template attributes (%ATTRIBUTE_NAME%).
If you enter user-defined attributes or
template attributes, use single % characters around them in the Advanced

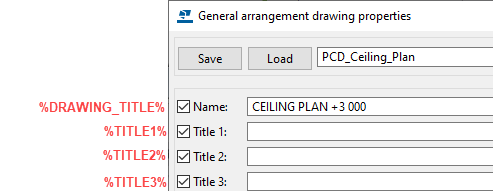

options dialog box. The %DRAWING_TITLE% attribute is
the default value, and the %TITLE% attribute gives the same result. If you use these attributes, the
view label gets the drawing name entered in the Name field in
the drawing properties dialog box. If you enter %TITLE1%, %TITLE2%, or
%TITLE3%, the view label gets the text from the Title 1 - Title 3
fields in drawing properties. You can also use the format %DR_TITLE1%, %DR_TITLE2%,
and %DR_TITLE3% to do the same.
For more information about moving views to another drawing, see Copy, link, or move drawing views.
This advanced option is model specific and the setting is saved in the options database.
