Base plate (1004)

Base plate (1004) creates a base plate that is connected to a column end.

Objects created

Base plate
Shim plates (optional)
Leveling plate (optional)
Grout (optional)
Shear key (optional)
Extra plates connecting the anchor rods
Anchor rods
Bolts
Additional component (optional)
Welds

Use for


Situation	Description
	Simple base plate detail
	Base plate detail with a shear key
	Base plate detail with Straight anchor rods Extra plates connecting the anchors
	Base plate detail with Anchor rods with hooks Leveling plate below the base plate Grout and hole for grouting Cast plate

Before you start

Create a column.

Selection order

Select the main part (column).
Pick a position.

The detail is created automatically.

Part identification key


	Part
1	Base plate
2	Shim plate
3	Leveling plate
4	Grout
5	Cast plate
6	Shear key
7	Anchor rod
8	Extra plate 1
9	Extra plate 2

Example: Add a base plate and anchor rods using Base plate (1004)

In this example, you will add a base plate detail and anchor rods to a column.

Click the Applications & components button in the side pane to open the Applications & components catalog.
Enter base plate in the search box.

To view the thumbnail images of the components in the search results click .
Select Base plate (1004).
Select the column.
Pick a position at the base of the column.

Tekla Structures automatically adds the base plate when you pick the position.
Next, modify the anchor rod dimensions.
1. Switch on the Select components switch to more easily select components.
2. Double-click the component symbol in the model to open the Base plate (1004) component dialog box.
3. Go to the Anchor rods tab.
4. Change the dimensions of the anchor rods.
5. To change only this base plate, select ignore other types from the list in the top part of the dialog box.
6. Click Modify.

Picture tab

Use the Picture tab to control the position of the base plate and the length and position of the shear key.

Dimensions


	Description
1	Distance from the flange to the edge of the base plate. Enter a negative value to make the base plate larger.
2	Weld gap.
3	Height of the shear key.

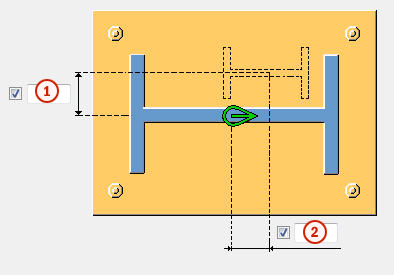

Shear key offset


	Description
1	Shear key vertical offset from the column center.
2	Shear key horizontal offset from the column center.

Parts tab

Use the Parts tab to control the dimensions of the base plate, shear key, leveling plate, and shim plates.

Plate


Option	Description	Default
Plate	Base plate thickness.	thickness = `0.5*bolt diameter rounded up to the next plate thickness` The default name is `BASEPLATE`.
Leveling Plate	Leveling plate thickness, width and height.	thickness = `1/4`
Leveling plate hole diameter	Leveling plate hole diameter.
Leveling plate hole tolerance	Leveling plate hole tolerance.
Fitting plate	Shim plate thickness, width and height. Define up to three different shim plates.
Number of fitting pl.	Number of shim plates for each thickness.	`1`
Additional beam	Shear key profile by selecting it from the profile catalog.	`HEA 300` (in Default environment)
Additional beam rotation	Select the shear key rotation type and define the rotation angle.
Additional beam welded to	Define to which plate the shear key is welded.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Class	Part class number.
Finish	Describes how the part surface has been treated.

Bolt edge distances in shim plate

Define the bolt edge distances for shim plates. When these fields are empty, shim plates are of the same size as the base plate.


	Description	Default
1	Horizontal bolt edge distance in the shim plate.	`30 mm`
2	Vertical bolt edge distance in the shim plate.	`30 mm`

Shim plate shape


Option	Description
	Default Holes are based on the bolt group of the connection. AutoDefaults can change this option.
	Holes are based on the bolt group of the connection.
	Finger shim plate with horizontal slots. The plate can be installed from the right or the left side of the connection.
	Finger shim plate with vertical slots. The plate can be installed from the top of the connection.
	Two separate finger shim plates with horizontal slots.
	Two separate finger shim plates with vertical slots.

Tolerance

Define the tolerance for the slots in finger shim plates. The width of the slot is the bolt diameter + the tolerance.

Parameters tab

Use the Parameters tab to control the component and the grout hole.

Grout hole

Define whether a grout hole is created in the base plate. The hole is also created in the leveling plate and shim plates, if they exist in the detail.


Option	Description
	Default Grout hole is not created. AutoDefaults can change this option.
	Grout hole is not created.
	Grout hole is created.
	Two grout holes are created.

Grout hole dimensions

If the base plate has two grout holes, define the dimensions for both holes.


	Description
1	Location of the grout hole from the center of the column in the direction of the web.
2	Grout hole diameter.
3	Location of the grout hole from the center of the column in the direction of the flange.

Gap size

Define the limit value for the gap between the base plate and the column. Use this when the column is slightly inclined.

If the actual gap is smaller than this value, the end of the column is left straight.

If the actual gap is larger than this value, the end of the column is fitted to the base plate.

Using additional components

You can use additional system or custom components to modify the column end or the base plate. For example, you can create special backing plates, weld preparations, and weld access holes for the column end.

If you use additional system or custom components, you need to manage the column end or the base plate properties in the additional component in question. When using several components, there may be multiple welds and cuts.


Option	Description
Component	Select a system or a custom component from the Applications & components catalog.
Attributes	Select an attribute file for the component.
Input	Define to which parts the selected component is applied. Default is same as Base + Column. Column sets the column as the main part. Use this option for details. Column + Base sets the column as the main part and the base plate as the secondary part. Base + Column sets the base plate as the main part and the column as the secondary part. Base sets the base plate as the main part.

Bolts tab

Use the Bolts tab to control the bolt properties.

Bolt group dimensions


	Description
1	Select how to measure the dimensions for horizontal bolt group position. Left: From the left edge of the secondary part to the leftmost bolt. Middle: From the center line of the secondary part to the center line of the bolts. Right: From the right edge of the secondary part to the rightmost bolt.
2	Dimension for horizontal bolt group position.
3	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
4	Number of bolts.
5	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.
6	Dimension for vertical bolt group position.
7	Select how to measure the dimensions for vertical bolt group position. Top: From the upper edge of the secondary part to the uppermost bolt. Middle: From the center line of the bolts to the center line of the secondary part. Below: From the lower edge of the secondary part to the lowest bolt.
8	Define which bolts are deleted from the bolt group. Enter the bolt numbers of the bolts to be deleted and separate the numbers with a space. Bolt numbers run from left to right and from top to bottom.

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`
Site/Workshop	Location where the bolts should be attached.	`Site`

Cut length

Defines the depth at which Tekla Structures searches for the sections of the bolted parts. You can determine whether the bolt will go through one flange or two.

Bolt comment

You can define a bolt comment.

Slotted holes

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.

Bolt assembly

The selected check boxes define which component objects (bolt, washers, and nuts) are used in the bolt assembly.

If you want to create a hole only, clear all the check boxes.

To modify the bolt assembly in an existing component, select the Effect in modify check box and click Modify.

Bolt length increase

Define how much the bolt length is increased. Use this option when, for example, painting requires the bolt length to be increased.

Anchor rods tab

Use the Anchor rods tab to control the creation of different types of anchor rods.

Anchor rod dimensions


Option	Description
Rod profile	Anchor rod profile. You can add a comment about the part.
Nut profile	Nut profile.
Washer profile	Washer profile.
Plate washer	Plate washer thickness, width and height.
Cast plate	Cast plate thickness, width and height.
Grout	Grout thickness. Grouting helps you to model columns to the top of concrete parts and place the base plate correctly. It also makes it easier to dimension the detail in GA drawings. By default, no grouting is created. Select whether the grouting is created with or without slopes above or below the detail creation point. This also affects the shim plates.

Anchor rod part properties


Option	Description	Default
Pos_no	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Class	Part class number.
Finish	Describes how the part surface has been treated.
Comment	Add a comment about the part.

Base plate with

Select whether to create the base plate with bolts, anchor rods, or a custom component.

By default, the base plate is created with Bolts.

Anchor rod dimensions


	Description	Default
1	Size or the length of the nut.	`anchor rod diameter`
2	Size or the thickness of the washer.	`half of nut size`
3	Length of the anchor rod.	`500 mm`
4	Length of the anchor rod above the base plate.	`50 mm`
5	Distance between the cast plate and the base plate.	`60 mm`
6	Length of the upper thread.	`0 mm`

Anchor rods types


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	a Radius of the hook b Width of the hook	a = `2*anchor bar diameter` b = `1/5 of anchor bar length`
	a Radius of the hook b Width of the hook c Height of the hook	c = `same as width of the hook`
	d Length of the anchor rod below the extra plate e Length of the lower thread	d = `2nut size` e = `4nut size plus thickness of extra plate`
	a U-shape anchor rod Radius of the hook

Hook direction


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	Type 2
	Type 3
	Type 4

Bolting direction

Note:

You can define the bolting direction if you have created the base plate with bolts.


Option	Description
	Default Bolting direction 1 AutoDefaults can change this option.
	Bolting direction 1
	Bolting direction 2

Cast plate holes tolerance


Option	Description	Default
Cast plate holes tolerance	Tolerance of the cast plate holes.	`same as bolt tolerance`

Washer hole tolerance


Option	Description
Create hole in washer	By default, a hole is not created in the washer. Tolerance of the washer hole.

Create


	Description
1	Create the nut profile.
2	Create the washer profile.
3	Create the washer plate.

Anchor rod assembly

Define which parts of the anchor rod are included in the anchor rod assembly.

You can weld the washer plates above and below the base plate.

Extra plates tab

Use the Extra plates tab to control the placement, rotation, and type of the profiles (extra profile 1) created at the bottom of each anchor bar and the profiles (extra profile 2) that connect rows of anchor bars.

Part dimensions


Option	Description	Default
Extra profile 1	Define the first extra profile by selecting it from the profile catalog.	`PL10*100`
Extra profile 2	Define the second extra profile by selecting it from the profile catalog.	`PL10*100`

Part properties


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Class	Part class number.
Finish	Describes how the part surface has been treated.

Edge distance of extra profile 1


	Description	Default
1	Edge distance of extra profile 1.	`50 mm`

Type and direction of extra profile 1


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	Type 2
	Type 3

Edge distance of extra profile 2


	Description	Default
1	Distance of extra profile 2 from the axis of the anchor bar.	`Half of the nut size or anchor bar diameter`

Extra profile 2 type


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	Type 2
	Type 3
	Type 4
	Type 5
	Type 6

Length of extra profile 2


	Description	Default
1	Length of extra profile 2 from the axis of the anchor bar.	`50 mm`

Direction of extra profile 2


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	Type 2

Extra profile 1 properties


Option	Description	Default
Hole tolerance	Hole tolerance of extra profile 1.	`Same as bolt tolerance`
Circular profile height	Enter the height of a circular extra profile 1.
Profile rotation	Profile rotation of extra profile 1.	`Front`

Extra profile 2 rotation


Option	Description	Default
Extra profile 2 rotation	Profile rotation of extra profile 2.	`Front`

General tab

Click the link below to find out more:

General tab

Analysis tab

Click the link below to find out more:

Analysis tab

Welds

Click the link below to find out more:

Create welds
