XS_​REBAR_​REVERSE_​END_​SYMBOLS

Category: Concrete Detailing

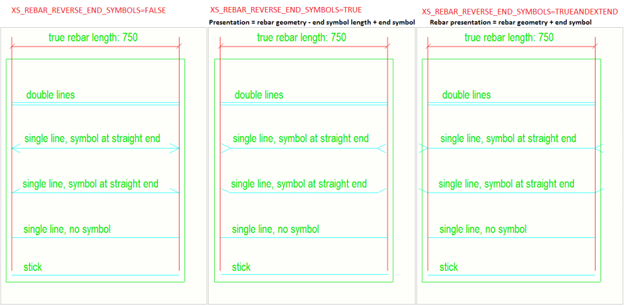

Use to reverse the reinforcing bar end symbols to a different direction. When this advanced option is set to TRUE, the end symbol is drawn at 135 degree angle (used commonly in Norway). If you use single line visualization and no symbol at straight end, use the value TRUEANDEXTEND. If you use TRUE for these kinds of reinforcing bars, they will be drawn too short. The default value is FALSE.

This advanced option is role specific. When the type SYSTEM(ROLE) is in use, the default value is used. When the type MODEL(ROLE) or DRAWING(ROLE) is in use, you can change the value, which is then the same for all users in the current model.

See also

XS_​REBAR_​END_​SYMBOL_​MIN_​SIZE

Reinforcement object properties in drawings
