Define portal frame parapet geometry

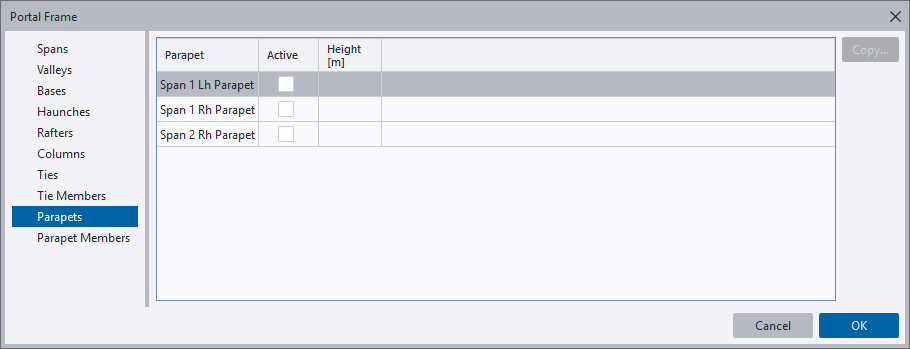

You can add eaves parapets from the Parapets page of the Portal Frame dialog box.
Add a parapet
- Select the Parapets page.
- Select Active to enable the parapet to be defined.
- Enter its Height above the eaves (which must be at least 0.1 metres).
