Mirror objects to new locations

To copy existing elements by mirroring them, see the following instructions.

Select the objects that you want to mirror.
On the Edit tab, click Mirror.
In the Properties window, select the desired Mirror mode:

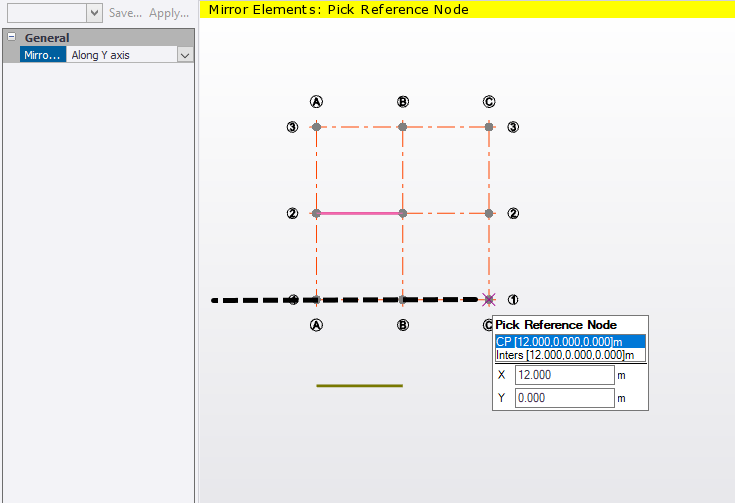

- Along Y axis mirrors the objects about a global XZ plane defined by a single reference point.

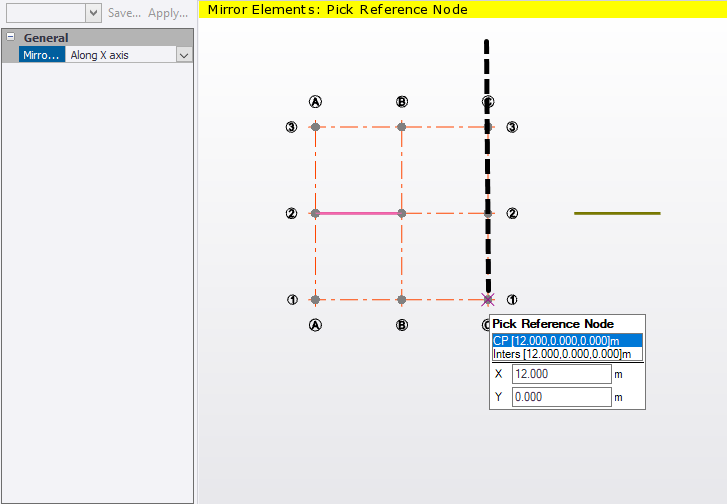

- Along X axis mirrors the objects about a global YZ plane defined by a single reference point.

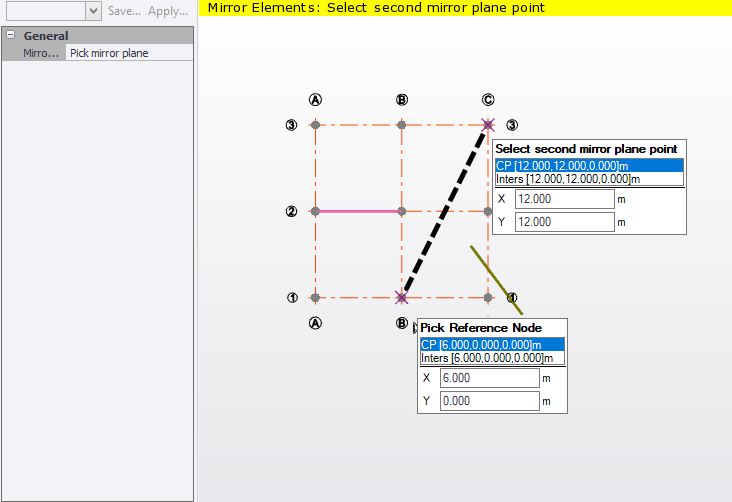

- Pick mirror plane mirrors the objects about a plane defined between two points.

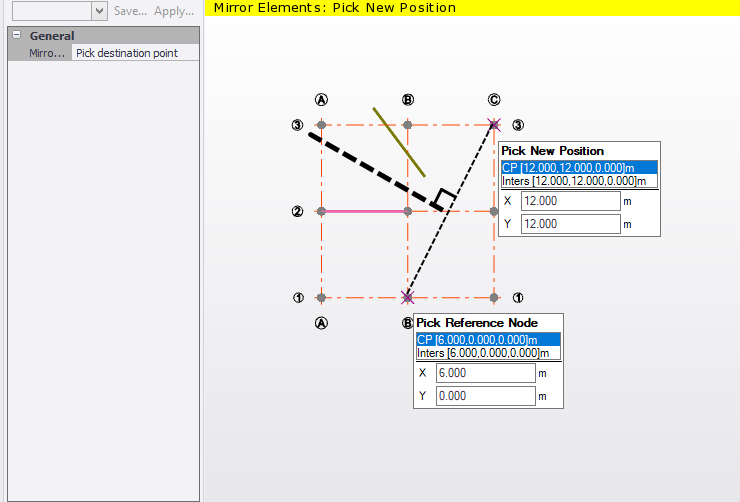

- Pick destination point mirrors the objects about a plane which perpendicularly bisects a line defined between two points.
In the model, click the reference points.
If you are using the Pick mirror plane or Pick destination point mode, click the second point to define the mirror plane.
