Tekla Structural Designer

Report views

Report views can be set up for printing and export to others applications. They can be configured as required to contain tabular data (such as model input, loading and results), pictures, views and charts. Report filters and styles can be applied to control the level of output. Several example reports are provided, but you can also create your own customized reports.

To open a report:

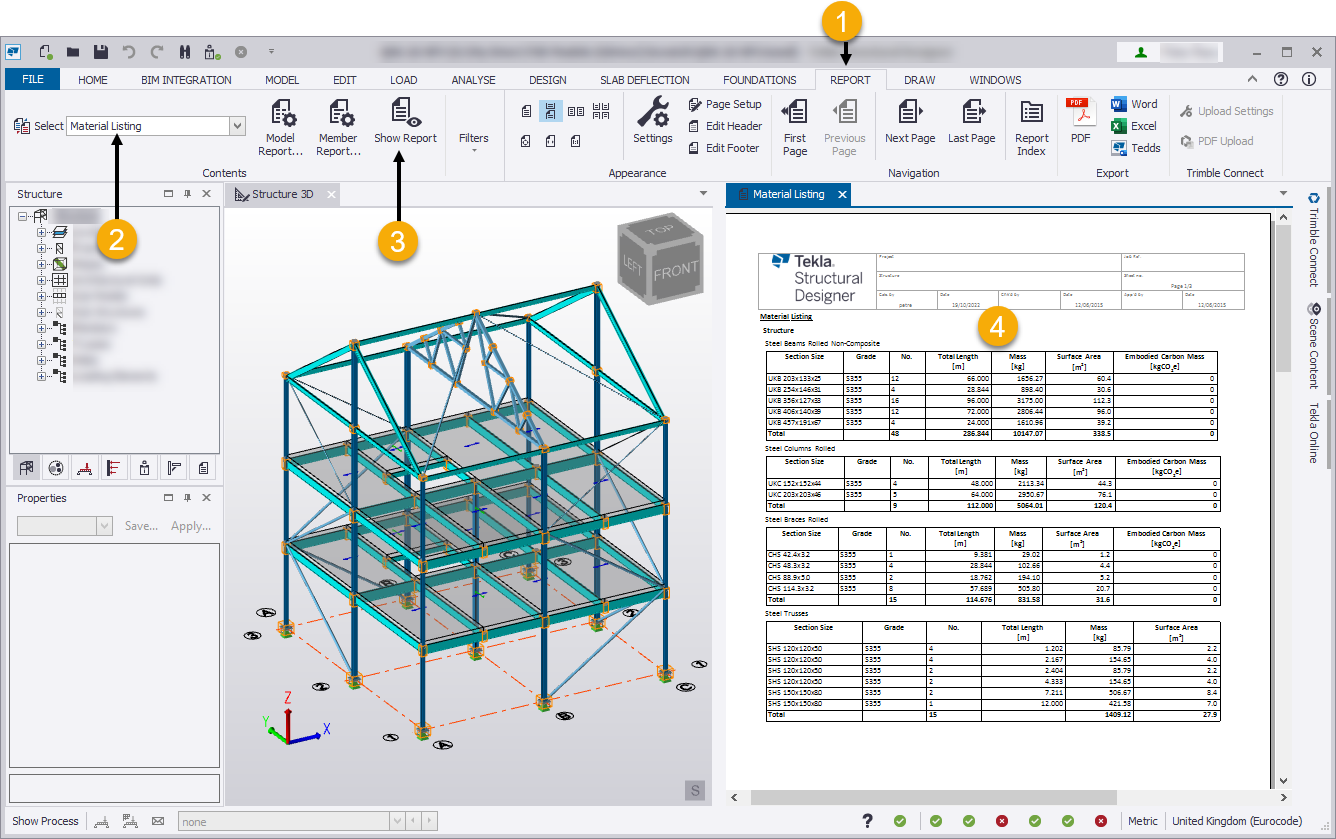

  • On the Report ribbon (1), use the Select droplist (2) to choose the report to display.
  • Select Show Report (3)
  • The selected report is displayed in a Report View (4).
