Overview of the Load Analysis view

Analysis results for individual members and walls can be displayed in a Load Analysis View.

To open a Load Analysis View:

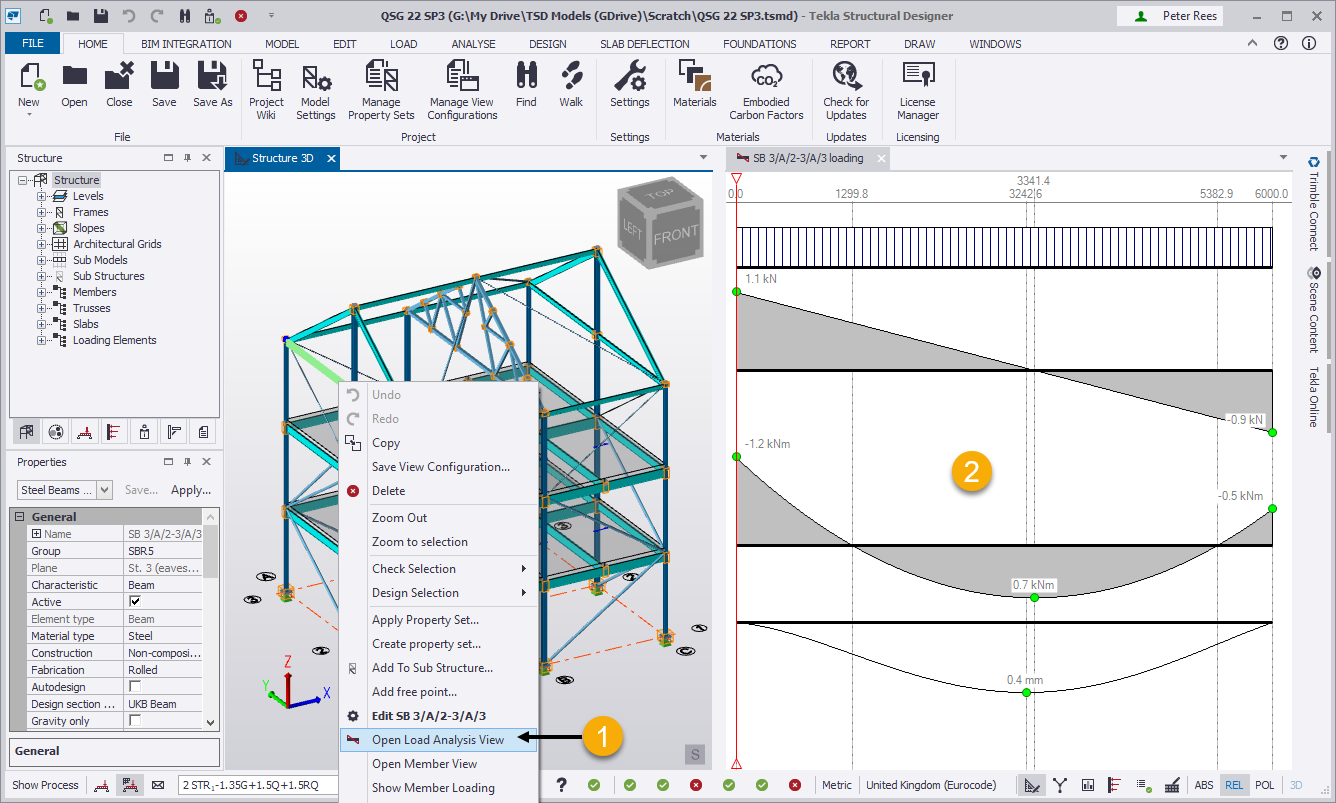

  • Right click on a member or wall in a Scene View.
  • From the context menu select Open Load Analysis View (1).
  • The analysis results are displayed in a Load Analysis View (2).
