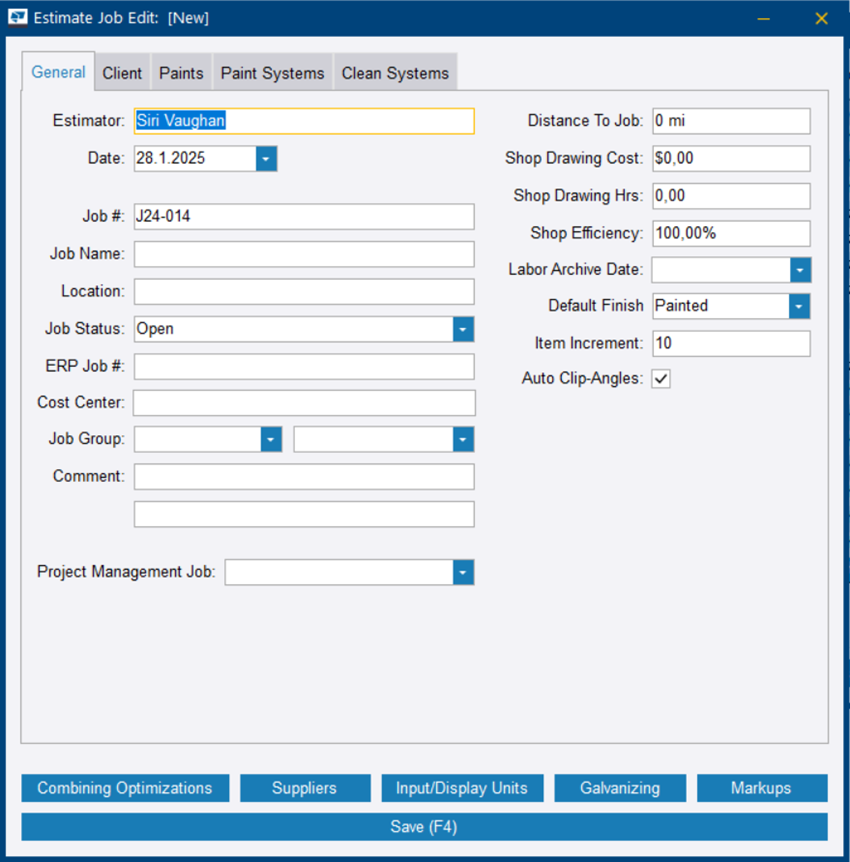

1. In the <Module> Job Edit dialog, select the General tab.
2. Add or modify the properties as needed.

   Option	Description
   Estimator	The name of the estimator. You can sort estimating jobs based on the estimator.
   Date	The date on which the bid is due. Tekla PowerFab automatically uses the date when you create the job, but you can select a different date in the associated calendar.
   Job #	The job number is prepopulated with the next sequential number based on the last created estimate. You can change this. You cannot change the number after saving the properties.
   Job Name	The description of the job.
   Location	The town or city where the job takes place.
   Job Status	The job is either still in progress (Open) or it has been finished (Closed). Estimating has three additional default values, Bidding, Awarded, and Lost. You can filter the Select <Module> Job dialog by Job Status, so that only open jobs are shown. See also Job status maintenance.
   ERP Job #	The accounting system job number. Typing the accounting system job number in the ERP Job # field allows you to link material items properly when you export information to an accounting system, such as Trimble Viewpoint.
   Job Group	Job groups allow you to identify and classify jobs that are similar. This makes filtering and reporting easier when you have a long list of jobs. Either type a job group directly in the blank field, or select an existing job group.
   Comment	Any additional comments on the job.
   Distance To Job	The distance to the job site. Tekla PowerFab uses the distance to calculate freight costs if you have selected the Freight Per Mile option in Freight Maintenance. For more information, see Modify freight pricing.
   Shop Drawing Cost	The total cost of the shop drawings. The value is used in the fabrication summary report. See Apply detailing labor.
   Shop Drawing Hrs	The total labor hours used in shop detail drawings. The value is used in the fabrication summary. Costs automatically include the Detailing labor rate set in Maintenance > Estimating > Labor Rates. See Apply detailing labor.
   Shop Efficiency	The efficiency percentage of the shop, used for calculating labor times. Shop efficiency is calculated by dividing the labor times accordingly. For example, typing 75% would increase overall labor times by 33.3%, whereas entering 125% would reduce the labor times by 20%. Note that shop efficiency cannot be set to 0.
   Labor Archive Date	Allows you to select a labor archive date that holds the labor-related calculations that have been set up in Maintenance > Estimating. The labor archive date holds the numbers for the following areas: Cleaning Maintenance Fabricator Information Labor Rates Weld, Drill, Punch, and Burn tables Labor Standards, Labor Operations, and Labor Groups
   Default Finish	The default finish used for new items in the estimating job. You can change the finish item by item.
   Item Increment	Sets the autoincrement for item numbers. The default autoincrement of 10 allows items to be added in the list as needed, without having to renumber the other items in the job. For example, if items should be numbered as 10, 20, 30, ..., set the input increment to 10. If the autoincrement of item numbers is not necessary, type 1.
   Auto Clip-Angles	When selected, Tekla PowerFab adds standard clips in the estimating items according to their labor codes. When cleared, standard clips are not used.
   Project Management Job	The project management job that is linked to the job. By linking the job in this module and project management jobs to each other, you can share nesting results with the Project Management module. This way, you can save data transfer time. Edit dialog: To To load general and client contact informationfrom the selected project management job to the Estimating job, click Load Info.
   Edit dialog: Trimble Connect Project	The Trimble Connect project that is linked to the current job. To link the job to a Trimble Connect project, click Link, select a project in the Link Project to Trimble Connect dialog, and click Link Project. For more information, see Link Tekla PowerFab to Trimble Connect.

3. Do either of the following:
   • Click Save.

     The <Module> Job Edit dialog closes.

   • Continue to add or modify properties.

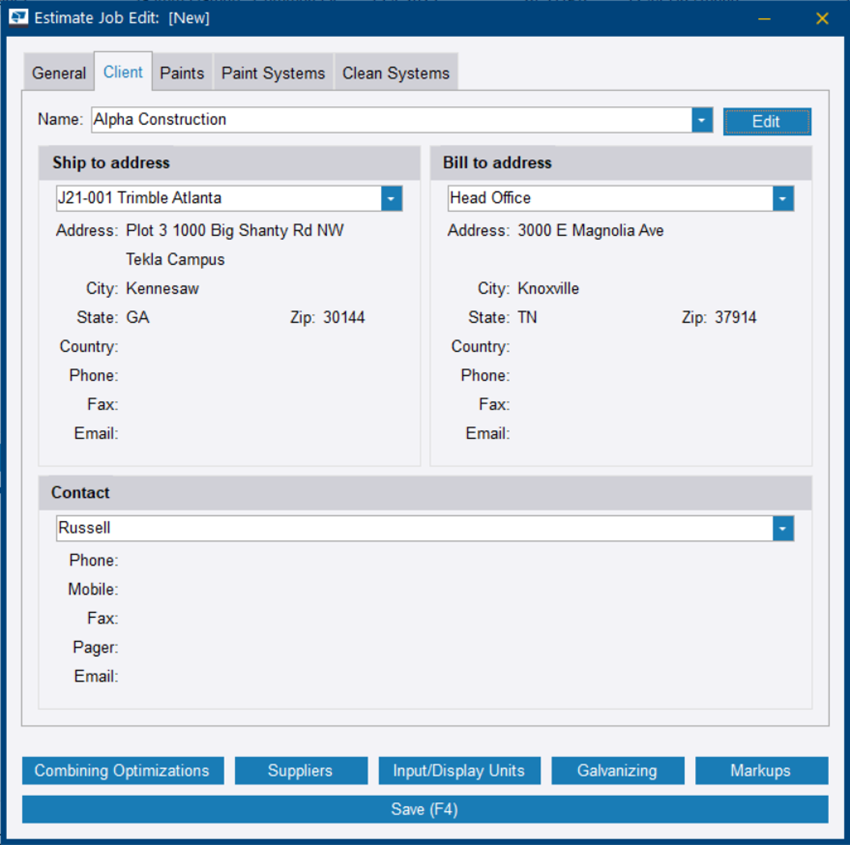

On the Client tab, you can record the client and the primary contact for the job, which makes finding a specific estimate much easier.

1. In the Estimate Job Edit dialog, select the Client tab.



2. Add or modify the properties as needed.

   To add or modify contacts, click Edit, which opens the Address Book.

   For information on managing contacts, see Address book.

3. Do either of the following:
   • Click Save.

     The <Module> Job Edit dialog closes.

   • Continue to add or modify properties.

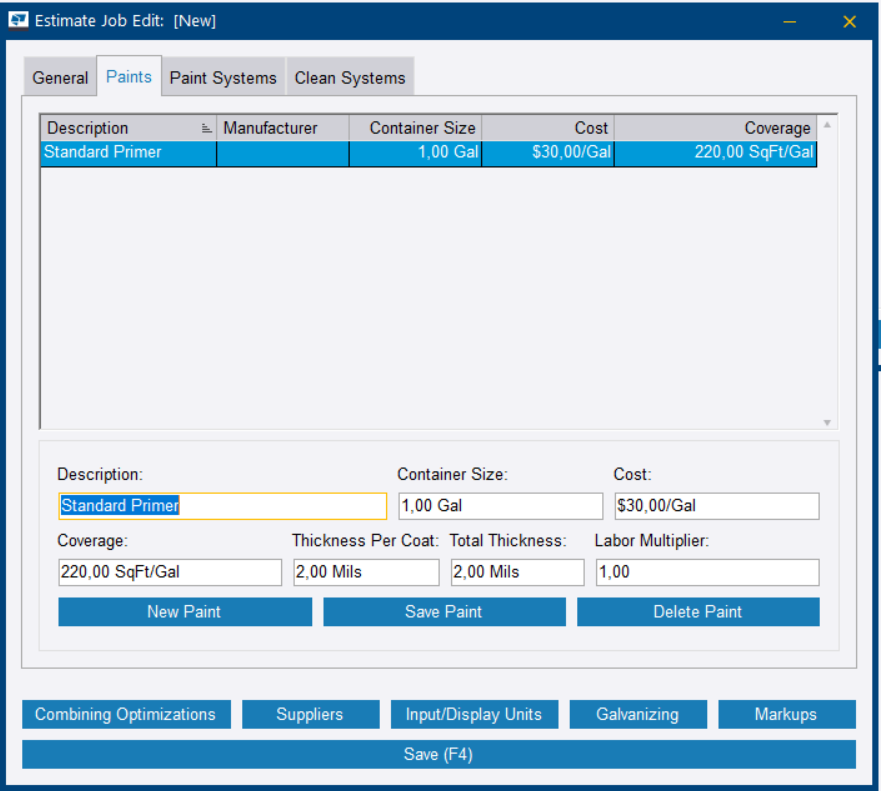

On the Paints tab, you can create and edit the paints used for an estimating job.

1. In the Estimate Job Edit dialog, select the Paints tab.



2. Add or modify the properties as needed.

   To	Do this
   Add a new paint type	Click New Paint. Define the paint properties. Click Add Paint. The new paint type is added.
   Modify a paint type	Select the paint type. Modify the properties. Click Save Paint. Your changes are saved.
   Delete a paint type	Select the paint type. Click Delete Paint. To permanently delete the selected paint type, click Yes. The paint type is permanently deleted.

3. Do either of the following:
   • Click Save.

     The <Module> Job Edit dialog closes.

   • Continue to add or modify properties.

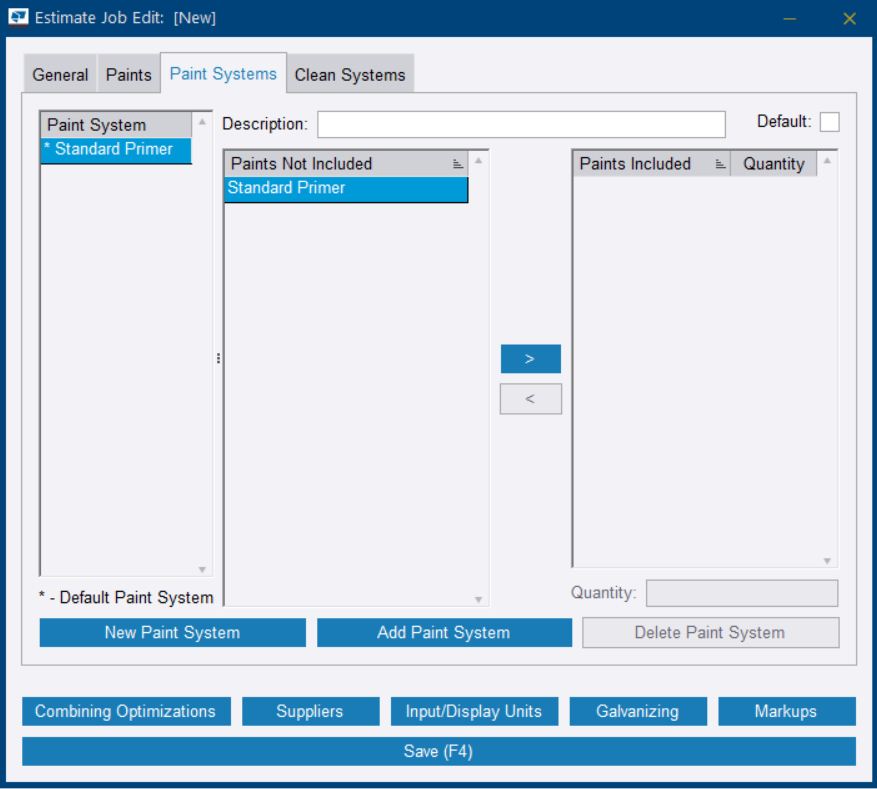

You can define a default paint system that consists of one or more paint products, for each of which you can define the number of coats needed. When you select a paint system in an estimating job, Tekla PowerFab calculates the applicable costs and adds them to the estimate.

1. In the Estimate Job Edit dialog, select the Paint Systems tab.
2. Click New Paint System.



3. Add or modify the properties as needed.

   To	Do this
   Add a new paint system	Click New Paint System. Type a description for the paint system in the Description field. Click the arrow buttons to move the paint types that you want to include to the Paints Included list. To change the number of coats, select an included paint type and type a new value in the Quantity field. To set the paint system as the default paint system for new estimating jobs, select the Default checkbox. Click Add Paint System.
   Modify a paint system	Select the paint system in the list. Change the description, included paints, or the number of paint coats according to your needs. To set the paint system as the default paint system for new estimating jobs, select the Default checkbox. Click Save Paint System.
   Delete a paint system	Select the paint system in the list. Click Delete Paint System. To permanently delete the paint system, click Yes.

4. Do either of the following:
   • Click Save.

     The <Module> Job Edit dialog closes.

   • Continue to add or modify properties.

You can create and modify job-specific clean systems.

1. In the Estimate Job Edit dialog, select the Clean Systems tab.
2. Click New Clean System.
3. Type a description for the cleaning system.
4. Use the arrow buttons to move the cleaning types that you want to include in the clean system to the Included list.
5. To add or reduce the times each cleaning type requires, change the value in the Quantity field.
6. If you only want to apply the cleaning system if cleaning is included in the labor code of the item, select the Check Labor Code For Include Cleaning checkbox.
7. To set the clean system as the default clean system used for new items, select the Default checkbox.
8. Click Add Clean System.
