Define time-tracking settings

Tekla PowerFab
Modified: 10 Mar 2026
2026
Tekla PowerFab Tekla PowerFab GO

Define time-tracking settings

Time-tracking information consists of the actual hours (regular, overtime, and double overtime) worked by employees and entered or imported in the project and production schedules. It provides the data necessary to monitor labor efficiency and catch cost overruns early.

You can define the settings that control adding and modifying time-tracking records in the Time Tracking Settings dialog.

You can identify the work performed by an employee using fields such as project, task, station, sequence, lot number, category, pay category, main mark, and piece mark. You can modify the time-tracking settings to enable the fields you require.

Users with administrator rights need to grant the relevant access rights for other users on the Company Standards tab in File > Administration. See Manage user permissions.

  1. Click the Maintenance ribbon tab.
  2. On the menu, select Time Tracking > Settings.

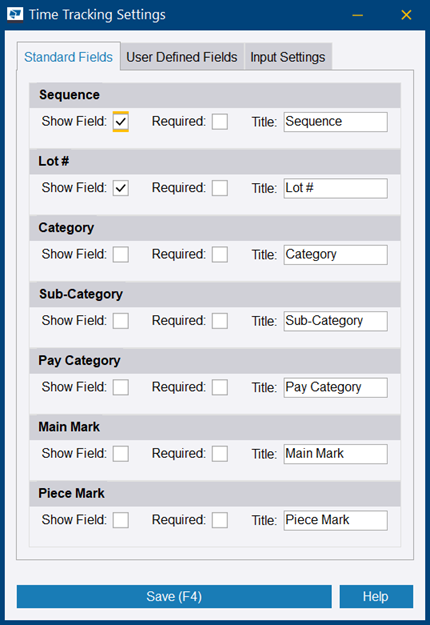

    The Time Tracking Settings dialog opens.

  3. On the Standard Fields and User Defined Fields tab, modify the fields as follows:

    Show Field: Select if you want to display a field when adding a time-tracking record and allow the user to type information to the field.

    Required: Select if you want to make the field mandatory. You need to type information in a required field in order to add a time-tracking record.

    Title: Type a new name in the field to change the title of the field in the New Time Tracking Record dialog.

  4. On the Input Settings tab, modify the properties as follows:

    Allow date entry only (without time): Select to enable adding a time-tracking record without start and end time.

    Compute start time from end time and hours: Select to calculate the start time automatically according to the end time and the total hours when you change the times of an input record.

    Compute end time from start time and hours: Select to calculate the end time automatically according to the start time and the total hours when you change the times of an input record.

    Compute hours from start time and end time: Select to calculate the regular hours automatically when you change the start or end time.

    Note that you can select either Compute start time from end time and hours or Compute end time from start time and hours, not both.

  5. To save the time-tracking settings, click Save.
