Add images and watermarks to a Stimulsoft report

You can add images and watermarks to your Stimulsoft report.

Add images

You can add company logos or user signatures as image files to the report.

  1. Do either of the following:
    • On the Insert ribbon tab, select Components > Image.
    • In the tooldbar, click Image.

      If you do not have the button, click Setup Toolbox and select Image.

  2. Select a location for the image.
  3. Select an existing image from the Gallery or load an image from a file.

    Use the property File to specify where to load the file from. Ensure that this location is available to other users if needed.

Add a watermark

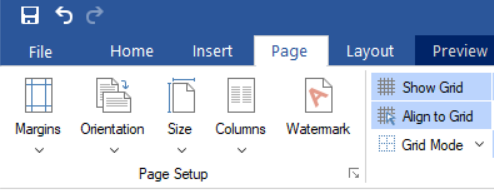

  1. On the Page ribbon tab, click Watermark.

  2. Type a text or add an image.

    To adjust the text and image properties, click More Options.

The watermark appears on all pages of the report.
