Modify Stimulsoft report appearance

On the toolbar, you can select various formatting options for the text fields.

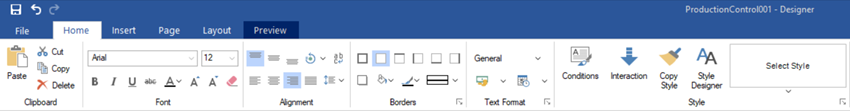

  1. To format text fields, go to the Home ribbon tab.

    1. Select an item on the report.

      To apply changes to multiple items at once, hold down Shift and select the items you want to modify.

    2. Select a formatting option on the toolbar.

      For example, you can select font, font size and style, text alignment, and background and foreground colors. You can also specify borders using the toolbar for single or multiple controls.

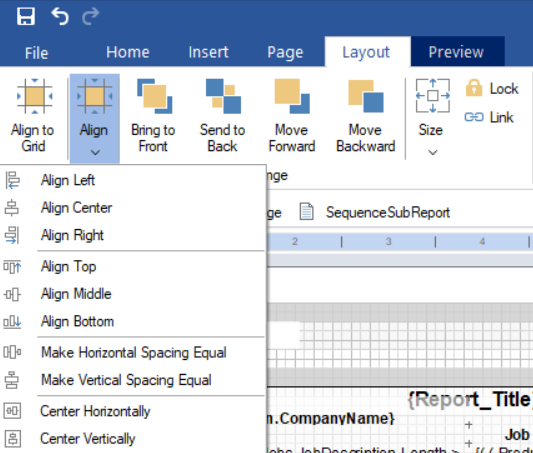

  2. To align components when moving fields and labels, go to the Layout ribbon tab.
    1. Select multiple components.

      The first component that you select determines the position of the other components.

    2. Click Align.

    3. Select an option on the dropdown menu.

You can also modify the position, appearance, behavior, and design of the components on the Properties tab in Page > Panels > Properties.
