The Links button in production control jobs allows you to view the properties of all materials that are linked to the selected production control items.

1. Select items in the Production Control dialog.

   To select multiple items, hold down Ctrl.

   To select a range of subsequent items, hold down Shift.

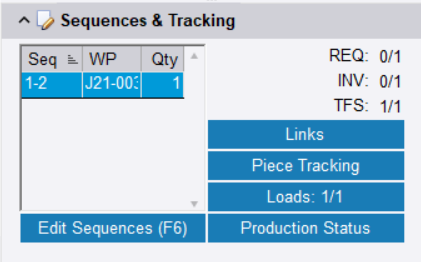

2. Click the Links button.

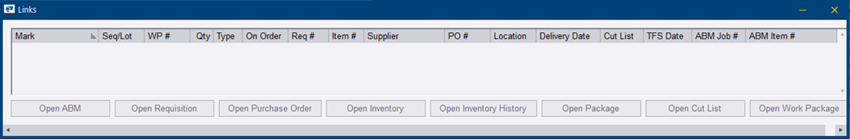

   The Links dialog opens, showing a list of all the linked material items in other Tekla PowerFab modules.



3. Select the item that you want to view in its own location in Tekla PowerFab.
4. Click one of the following:
   • Open Inventory or Open Inventory History

     The name of the button changes depending on whether or not the material is still in the inventory or has already been taken from stock.

   • Open Purchase Order
   • Open Cut List
   • Open Work Package
