Use the Add New Trimble Connect Projects command to create Trimble Connect projects based on the existing project management jobs.

1. Click the Maintenance ribbon tab.
2. On the menu, select Integration Settings > Trimble Integrations > Trimble Connect.

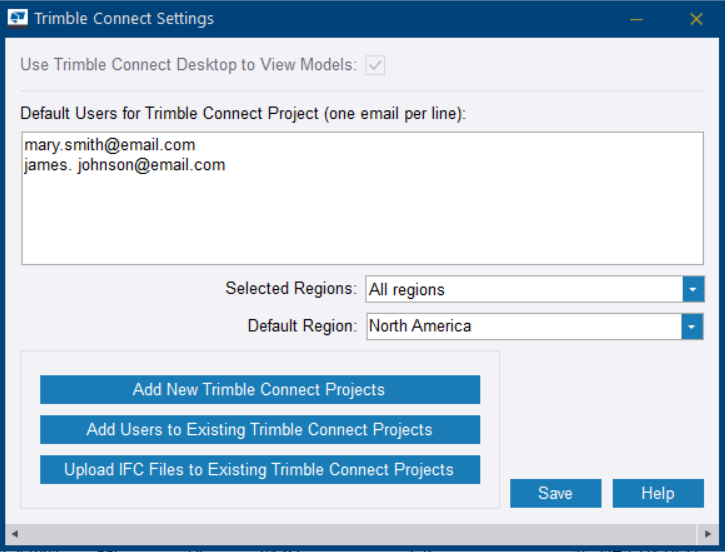

   The Trimble Connect Settings dialog opens.



3. Click Add New Trimble Connect Projects.

   The Select Project dialog opens.

4. Click the arrow buttons to move the production control jobs that you want to add as projects to the Included list.
5. Click OK.

   The Add Users to Project dialog opens.

6. Click the arrow buttons to move the users that need access to the project to the Included list.

   All users that are set as default Trimble Connect users are automatically in the Included list.

7. Click OK.

   The Status dialog opens showing the invitation process status.

8. When the setup is completed, click OK to close the Status dialog.
9. To attach an IFC model to the project, do the following:
   1. Open Trimble Connect for Windows.
   2. Double-click the new project to open it.
   3. In the Explorer side pane on the left, click the Add File button.
   4. In the Add Files dialog, browse to find the IFC model.
   5. Select the IFC model and click Open.
