Tekla Structures support in IPv6 networks

Tekla Structures 2017 can be used in modern networks that use either IPv4, IPv6, or both protocols. The companies that only have IPv6 Internet Service Provider (ISP) addresses can now use Tekla Structures from version 2017 onwards.

Internet Protocol Version 6 (IPv6) is a technology that helps to ensure that the Internet can support a growing user base and the increasingly large number of IP-enabled devices. Most devices and operating systems today have IPv6 installed as a software upgrade. IPv6 is usually supported in up-to-date hardware and operating systems, and it only needs activation or configuration.

IPv6 is an evolution of IPv4. It is possible to move from IPv4 to IPv6 without putting the current IPv4 infrastructure at risk.

Tekla Structures licence servers, multi-user servers, and Tekla Model Sharing servers, as well as network-attached storages, can all reside in a network that has both the IPv4 and IPv6 protocols enabled.

Network

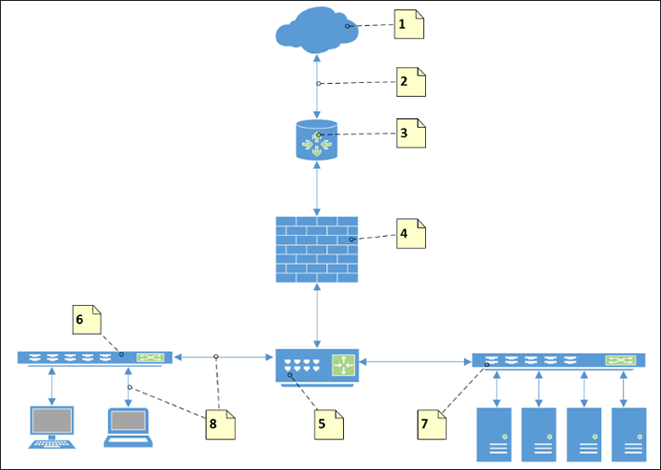

See the image below for an example of a network using the IPv6 protocol.

Internet
Internet connection
ISP router
Firewall
Router
Workstation switch
Server switch
IPv6 connection

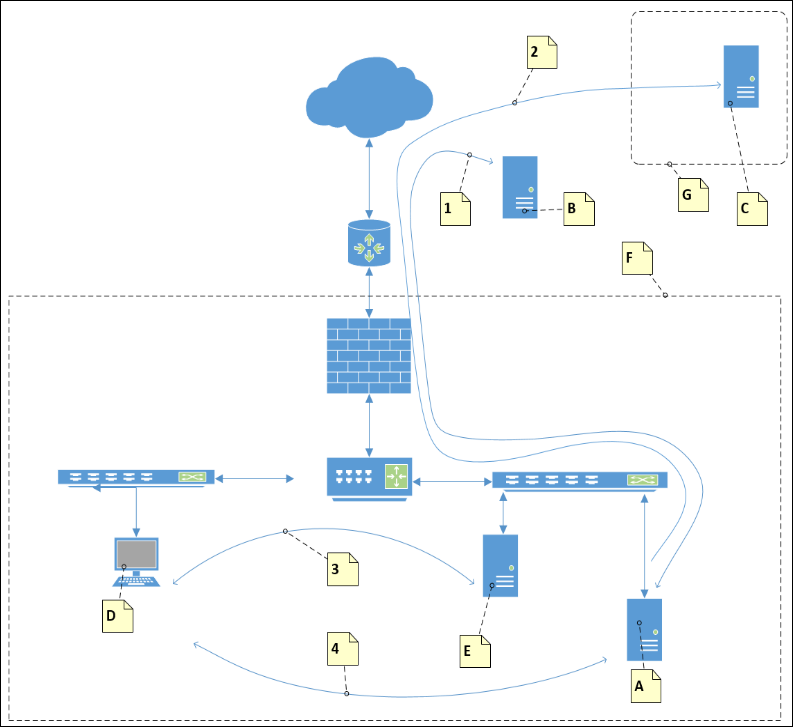

Network license activation

Components

A. License server, IP address (example): 2001:db8:85a3:1:c4f2:8472:463:2c75
B. Domain name server, IP address: 2001:4860:4860::8888
C. activate.tekla.com , IP address: 2001:aa:bb:cc:dd:ee:ff:1234
D. Workstation, IP address: 2001:db8:85a3:0:3412:8a2e:370:7334
E. Domain name server, IP address: 2001:db8:85a3:1:ac4d:1c43:97d1:ab3b
F. Company internal network
G. Network hosting the license activation server

Connectors

DNS query for activate.tekla.com
Request a license from the license activation server
DNS query for the license server name
Request a license
