Rebar in beam (90)
Rebar in beam (90) adds reinforcement bars to concrete beams.
Objects created
-

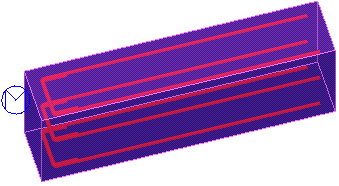

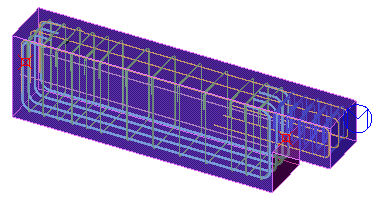

Stirrups
-
Perpendicular rebars
Use for
|
Situation |
Description |
|---|---|
|
|
Rebars in a concrete beam. |
|
|
Rebars in a concrete column. |
Before you start
Create the concrete part where you want to place the rebar.
Primary bottom bars tab
Use the Primary bottom bars tab to define the properties of the lower reinforcing bars.
Properties
|
Option |
Description |
|---|---|
|
Grade |
Define the grade of the main bottom reinforcing bars. This value is linked to the value in the Size box. |
|
Size |
Define the diameter of the main bottom reinforcing bars. Click the ... button to open the Select rebar dialog. In this dialog, you can select the grade and the related diameter. Note: Selecting a size will override the value in the
Grade box.
|
|
Bend lengths left |
Define the length of the left end extension. To define the length, select some other value than Default in End conditions left. |
|
Bend lengths right |
Define the length of the right end extension. To define the length, select some other value than Default in End conditions right. |
End conditions left/right
Define the end condition of the rebars on the left and right side.
|
Option |
Example |
|---|---|
|
Default |
|
|
90 degree |
|
|
135 degree |
|
|
180 degree |
|
|
-180 degree |
|
|
-135 degree |
|
|
-90 degree |
|
|
-45 degree |
|
|
45 degree |
|
Bar not to create
Define which rebars should not be created.
|
Option |
Example |
|---|---|
|
|
|
|
|
|
|
|
Creation method
Define the way the rebars are created.
|
Option |
Description |
|---|---|
|
No rebars |
No bottom rebars are created. |
|
Number of bars |
A fixed numer of bars is created. The spacing between the bars is automatically calculated. |
|
By spacing |
The related box becomes active. The entered value is the fixed spacing for the rebars. The number of rebars is calculated automatically. |
Positioning and distances
Define the size of the rebars and their positioning.
Below are some examples for positioning the rebars on the left side:
|
Option |
Description |
Example |
|---|---|---|
|
|
The part edge is normative for positioning the rebar. |
|
|
|
The concrete parts’ reference point is normative for positioning the rebar. |
|
|
|
The picked position is normative. |
|
|
|
The edge of the top part cut is normative for positioning the rebar. |
|
|
|
The edge of the bottom part cut is normative for positioning the rebar. |
|
|
|
The centerline of the concrete part is normative for positioning the rebar. |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Dimensions
Define the rebar dimensions.

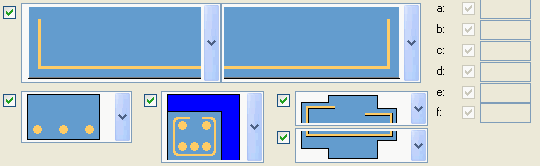

Shape and pattern
Define the rebar shape, rebar pattern, and rebar distribution.
Rebar shape
Define the common shape of the rebars on both ends of the concrete part. For some shapes, you can enter distances.
Rebar pattern
Define the rebar pattern. The options are:
Consider part cuts in longitudinal direction
Define if part cuts in the concrete part should be taken into account when positioning the rebars.
|
Option |
Example |
|---|---|
|
|
|
|
|
|
Consider part cuts in vertical direction
Define if rebar shape should consider the part cuts in vertical direction. You can define the placing for both the top side and bottom side. Examples:
|
Option |
Example |
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
Primary top bars tab
Use the Primary top bars tab to define the properties of the upper reinforcing bars.
Properties
|
Option |
Description |
|---|---|
|
Grade |
Define the grade of the main top reinforcing bars. This value is linked to the value in the Size box. |
|
Size |
Define the diameter of the main top reinforcing bars. Click the ... button to open the Select rebar dialog. In this dialog, you can select the grade and the related diameter. Note: Selecting a size will override the value in the
Grade box.
|
|
Bend lengths left |
Define the length of the left end extension. To define the length, select some other value than Default in End conditions left. |
|
Bend lengths right |
Define the length of the right end extension. To define the length, select some other value than Default in End conditions right. |
End conditions left/right
Define the end condition of the rebars on the left and right side.
|
Option |
Example |
|---|---|
|
Default |
|
|
90 degree |
|
|
135 degree |
|
|
180 degree |
|
|
-180 degree |
|
|
-135 degree |
|
|
-90 degree |
|
|
-45 degree |
|
|
45 degree |
|
Bar not to create
Define which rebars should not be created.
|
Option |
Example |
|---|---|
|
|
|
|
|
|
|
|
Creation method
Define the way the rebars are created.
|
Option |
Description |
|---|---|
|
No rebars |
No top rebars are created. |
|
Number of bars |
A fixed number of bars is created. The spacing between the bars is automatically calculated. |
|
By spacing |
The related box becomes active. The entered value is the fixed spacing for the rebars. The number of rebars is calculated automatically. |
Positioning and distances
Define the size of the rebars and their positioning.
Below are some examples for positioning the rebars on the left side:
|
Option |
Description |
Example |
|---|---|---|
|
|
The part edge is normative for positioning the rebar. |
|
|
|
The concrete parts’ reference point is normative for positioning the rebar. |
|
|
|
The picked position is normative. |
|
|
|
The edge of the top part cut is normative for positioning the rebar. |
|
|
|
The edge of the bottom part cut is normative for positioning the rebar. |
|
|
|
The centerline of the concrete part is normative for positioning the rebar. |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Dimensions
Define the rebar dimensions.
Shape and pattern
Define the rebar shape, rebar pattern, and rebar distribution.
Rebar shape
Define the common shape of the rebars on both ends of the concrete part. For some shapes, you can enter distances.
Rebar pattern
Define the rebar pattern. The options are:
Consider part cuts in longitudinal direction
Define if part cuts in the concrete part should be taken into account when positioning the rebars.
|
Option |
Example |
|---|---|
|
|
|
|
|
|
Consider part cuts in vertical direction
Define if rebar shape should consider the part cuts in vertical direction. You can define the placing for both the top side and bottom side. Examples:
|
Option |
Example |
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
Side left tab
Use the Side left tab to create and define the properties of the horizontal rebars on the left side.
The rebars which can be created are placed in longitudinal direction (similarly as the primary bars), but now the bends are created horizontally. The options on this tab (defining rebar shape, dimensions, number of bars, and rebar distribution) are similar to the options on the Primary bottom bars tab.
Examples of rebars which can be created with this tab:
Side right tab
Use the Side right tab to create and define the properties of the horizontal rebars on the right side.
This tab is similar to the Side left tab but the reference is the right side of the parts.

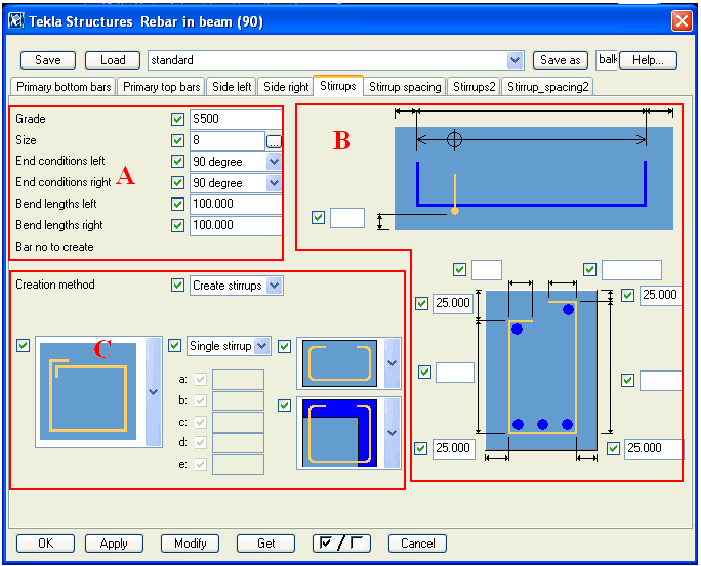

Stirrups tab
Use the Stirrups tab to define the dimensions of the stirrups in the first section of the concrete part.
Section A - Stirrup dimensions
|
Option |
Description |
|---|---|
|
Grade |
Define the grade . This value is linked to the value of the Size box. |
|
Size |
Define the diameter. Click the ... button to open the Select rebar dialog. In this dialog, you can select the grade and the related diameter. Note: Selecting a size will override the value in the
Grade box.
|
|
Bend lengths left |
Define the length of the left end extension. To define the length, select some other value than Default in End conditions left. |
|
Bend lengths right |
Define the length of the right end extension. To define the length, select some other value than Default in End conditions left. |
End conditions left/right
Define the end condition of the rebars on the left and right side.
Section B - Stirrup dimensions
Define a fixed distance from the bottom side of the concrete parts to the bottom side of the stirrup.
Note: This offset is
normative.

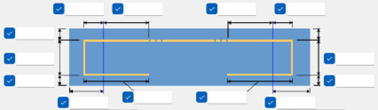

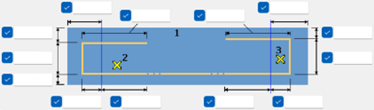

Define the offset, width, and height of the stirrup.
Section C - Stirrup shape
Define the general shape of the stirrups.
Create stirrups
Define how stirrups are created.
|
Option |
Description |
|---|---|
|
No |
No stirrups are created. |
|
As one group |
Stirrups are created as one group. |
|
As separate group |
Stirrups are created as separate groups. |
Shape of the stirrup
|
Option |
Description |
Example |
|---|---|---|
|
|
No stirrups are created |
|
|
|
U-shape stirrups |
|
|
|
C-shape inside |
|
|
|
Closed box |
|
|
|
Closed box overlap |
|
|
|
Divided stirrup |
|
|
|
Divided stirrups overlap |
|
|
|
Double U-shape |
|
|
|
Single U-shape left |
|
|
|
Single U-shape right |
|
Stirrup rotation
You can define the rotation of the stirrups. There are four options and each option rotates the stirrup 90 degrees counterclockwise.
Stirrup spacing tab
Use the Stirrup spacing tab to define the distribution of the stirrups along the concrete part.

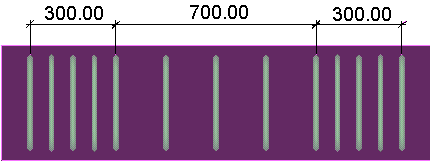

You can define six zones for the distribution. For each zone you can set a number of stirrups. The distance between the stirrups can be defined in two ways:
-
Fixed spacing between each stirrup.
-
Distance between outer stirrups.
Spacing is then calculated from this distance divided by the number of stirrups.
Examples:
|
Option |
Example |
|---|---|
|
|
|
|
|
|
Stirrups 2 tab
Use the Stirrups 2 tab to define a second group of stirrups. The options on this tab are similar to the options on the Stirrups tab.

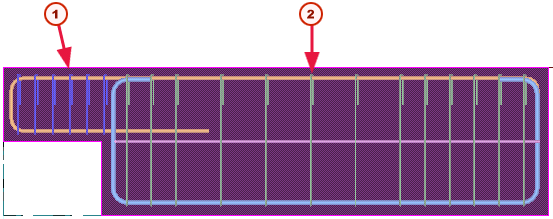

This tab can be used if the shape of the concrete part is not uniform. For example, if a part cut is applied, you may need different stirrups on that area.
|
|
Stirrups 2 |
|
|
Stirrups |
Stirrups 2 spacing tab
Use the Stirrups 2 spacing tab to define the spacing of the second group of stirrups. The options on this tab are similar to the options on the Stirrups spacing tab.
Stirrups 3 tab
Use the Stirrups 3 tab to define a third group of stirrups. The options on this tab are similar to the options on the Stirrups tab.

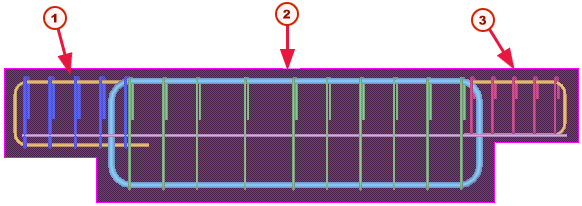

You may need this tab in case the concrete part contains multiple part cuts. For each area, the properties of the stirrups can be configured.
Example:
|
|
Stirrups 2 |
|
|
Stirrups |
|
|
Stirrups 3 |
Stirrups 3 spacing tab
Use the Stirrups 3 spacing tab to define the spacing of the third group of stirrups. The options on this tab are similar to the options on the Stirrups spacing tab.
Advanced tab
Use the Advanced tab to define the naming and numbering properties of rebars and stirrups.
You can add the following information:
-
Comment
-
Name
Rebar profile
Default name
Main bottom rebars
BOTTOM_BAR
Main top rebars
TOP_BAR
Side left
REBAR
Side right
REBAR
Stirrups
STIRRUP
Stirrups2
STIRRUP
Stirrups3
STIRRUP
-
Class
If you leave Class blank, the following default classes will be used:
Rebar profile
Default class
Main bottom rebars
201
Main top bars
202
Side left
203
Side right
204
Stirrups
301
Stirrups2
302
Stirrups3
303
-
Prefix
If you leave Prefix blank, the prefix will be empty for all rebar profiles.
-
Start number
If you leave Start number blank, Tekla Structures will use '1' as default start number for all rebar profiles.
Configuration tab
Use the Configuration tab to define the bending radius and rotation.
Bending radius
You can set the bending radius separately for the main reinforcing bars and the stirrups. You can also set the radius separately for the main bends and the hook-bends.
|
Option |
Description |
|---|---|
|
rebar_database.inp |
The bending radius is determined from a configuration file rebar_database.inp. This file is located in the profil folder. |
|
Relative to diameter |
The radius is calculated by multiplying the reinforcing bar diameter with the entered coefficient. |
|
Bending radius |
Use this option to use a fixed value for the bending radius. |
Rotation

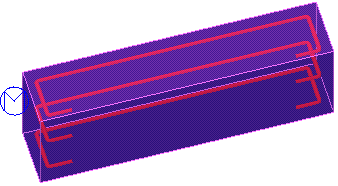

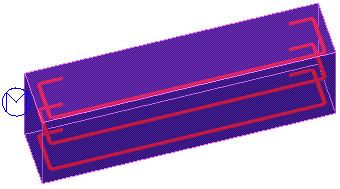

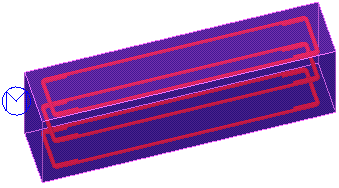

Define the orientation of the complete rebar structure in the concrete part. There are four options and each option represents a 90 degree rotation.
