When you copy properties in the property pane using the Copy to clipboard command, you can copy individual properties of an object to the clipboard. You can copy one or more properties to the clipboard and paste the properties to objects of the same type. After you have copied properties to the clipboard, and you place your mouse on the Paste button, Tekla Structures shows a preview of the properties that are about to be pasted.

Additionally, all user-defined attributes (UDAs), excluding unique UDAs, are copied with the object properties, also those which are not visible in the property pane.

These improvements were already introduced in Tekla Structures 2024 SP4.

For more information about the improvements in the drawing property pane, see Improvements in drawing property pane usability.

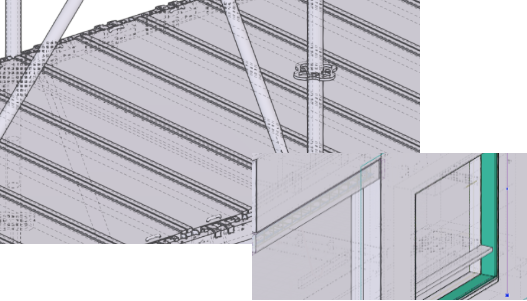

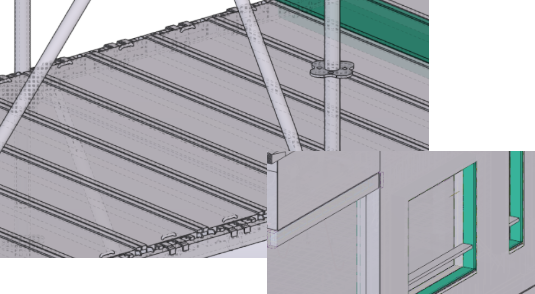

The transparency handling in the default DirectX rendering has been improved, allowing you to see model objects more clearly, especially at close zoom levels.

• The frontmost face towards the camera now has higher priority, resulting in a clearer visual outcome.
• Dashed hidden lines fade away earlier than before, making transparent views easier to see.

In Tekla Structures 2025:

In Tekla Structures 2024:

To maintain consistency of main parts in cast units, the main part set by the user using Set as new main part of assembly now remains unchanged when parts are added to a cast unit or removed from a cast unit.

Previously, adding a new part to the cast unit would reset the main part to the part with the largest volume. To avoid any unwanted changes, the main part remains as manually defined.

You can now select two assemblies or sub-assemblies, right-click, and then use the Compare command from the context menu to compare the assemblies.

Now, when a drawing is closed, the layout of the model view window returns to the same state as before opening the drawing. Maximized or minimized views and their layout will be the same before and after a drawing is opened and closed.

Previously, the Shift key was used to temporarily disable the snap switches when dragging a direct modification handle. Now, the Alt key is used for this instead.

Instead, the Shift key now locks the snapping direction when dragging a handle.

Previously, your could change your Tekla Structures setup (environment, role, and configuration) in File > Settings > License.

In Tekla Structures 2025 the License area has been renamed to Your current Tekla Structures setup, and you can no longer change the setup but the information is now as displayed as text. You can change the setup when you start Tekla Structures.
