Manlock beam (1033)
Manlock beam (1033) creates a hole group in a beam to provide an anchor point for the Manlock device, which is used to allow safe working conditions when bolting connections. The component does not create bolts. Web holes are placed skewed if the up direction is not orthogonal to the part.
Objects created
-
Holes
Use for
| Situation | Description |
|---|---|
|
|
Hole group created in a beam |
|
|
Manlock holes in a beam |
Selection order
-
Select the part (beam).
-
Pick a position for the hole group.
The hole group is created automatically when you pick the position.
Part identification key
| Description | |
|---|---|
|
1 |
Hole group |
Picture tab
Use the Picture tab to define the hole positions.

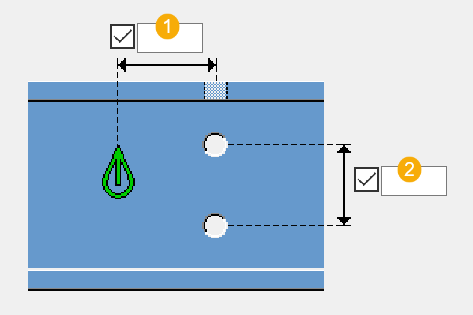

Hole positions
| Description | Default | |
|---|---|---|
|
1 |
Distance between the picked point and holes. A negative value places the holes in the x direction. |
300 mm |
|
2 |
Distance between web holes. The default value 0 creates a single hole. Enter a positive value to create double holes. |
0 |

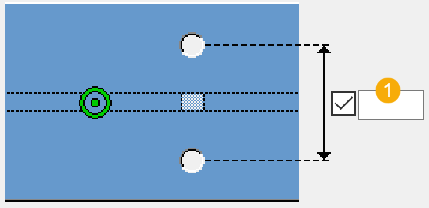

| Description | ||
|---|---|---|
|
1 |
Distance between flange holes. Enter 0 to create a single hole. |
90 mmm |
Parameters tab
Use the Parameters tab to define the hole group position and edge dimensions, and bolt standard and diameter.
Hole group position
| Option | Description |
|---|---|
|
|
Default Hole group is positioned both in the web and flange. AutoDefaults can change this option. |
|
|
Hole group is positioned in the web. |
|
|
Hole group is positioned in the flange. |
|
|
Hole group is positioned both in the web and flange. |
|
|
No hole group |
Bolt properties
| Option | Description | Default |
|---|---|---|
|
Bolt standard |
Select the bolt standard. |
|
|
Diameter |
Diameter of the bolts in the flange and web holes. |
22 mm Hole diameter is by default 1 mm larger than the bolt diameter. |
|
Tolerance |
Bolt tolerance |
Web hole offset
| Option | Description |
|---|---|
|
|
Default Edge distance from the beam top flange. AutoDefaults can change this option. |
|
|
Edge distance from the beam top flange. |
|
|
Edge distance from the beam bottom flange. |
|
|
Offset from the middle of the beam web. |
Flange hole offset
| Option | Description |
|---|---|
|
|
Default Offset from the middle of the beam flange. You can use positive or negative values to determine the offset side. AutoDefaults can change this option. |
|
|
Edge distance from the flange edge. |
|
|
Edge distance from the flange edge. |
|
|
Offset from the middle of the beam flange. You can use positive or negative values to determine the offset side. |
