Horizontal stiffener (1017)

Horizontal stiffener (1017) creates four horizontal stiffener plates to the position your pick on a beam.

Objects created


Situation	Description
	Horizontal stiffeners created.
	Parallel stiffeners created.

Select a beam.

You can select multiple beams using area selection.
Pick a position on the beam.

The stiffener plates are created automatically when you pick the position.


	Description
1	Upper stiffeners
2	Lower stiffeners

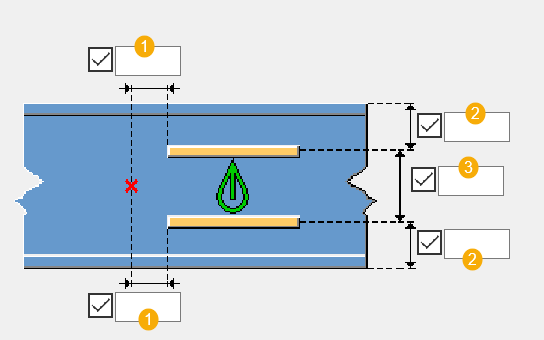

Use the Picture tab to control the geometry of the detail.


	Description	Default
1	Horizontal distance between the stiffeners and the point picked on the beam.	`0`
2	Vertical distance between the stiffeners and the beam flange.	0.25*beam height
3	Vertical distance between the upper and lower stiffeners.

Use the Parts tab to define the part properties.


Option	Description	Default
Upper stiffeners	Thickness, width, and height of the upper stiffeners.	Thickness = beam upper flange thickness Width = 0.5*(upper flange width-web thickness) Height = `300 mm`
Lower stiffeners	Thickness, width, and height of the lower stiffeners.	Thickness = beam lower flange thickness Width = 0.5*(lower flange width-web thickness) Height = `300 mm`


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
